Automatic Biodegradable Sale APET Cpet RPET Plastic Extruder Machine /PP Sheet Extrusion Line/Plastic Film Extruder

Product Description

PET/PLA Environmental Sheet Extrusion Line

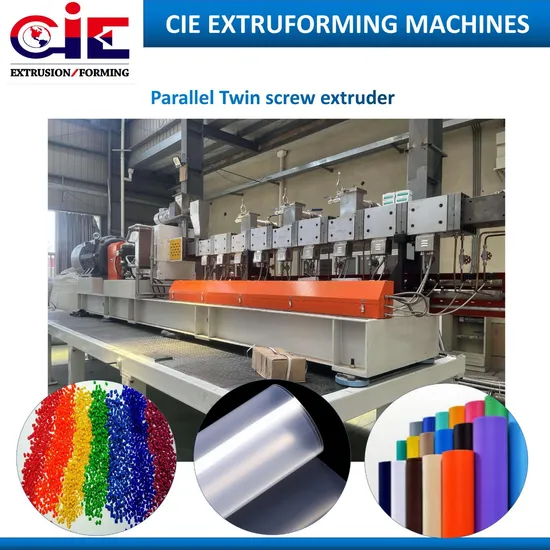

PET/PLA environmental sheet extrusion line: CIE group develops the parallel twin screw extrusion line for PET/PLA sheet, this line equipped with degassing system, and no need drying and crystallizing unit. The extrusion line has the properties of low energy comsuption, simple production process and easy maintenance. The segmented screw structure can reduce the viscosity loss of PET/PLA resin, the symmetrical and thin-wall calender roller highten the cooling effect and improve the capactity and sheet quality. Multi components dosing feeder can control the percentage of virgin material, recycling material and master batch precisely, the sheet is widely used for thermoforming packaging industry.
Our Advantages:
- Fully considers PET production process and combined with advanced PET extruder technology of Germany and Italy.
- The elements screw design and the barrel adopts European advanced vacuum system
- No need crystallize and dehumidify-dryer
- Universal Extruder design for 100% PET flakes or mixture of virgin + flakes, also available for running PP, HIPS, PLA.
Configuration of PET PP PS PLA Plastic Sheet Extrusion Line

SPECIFICATIONS FOR PET/PETG/CPET Precision Sheet Making Machine
Model	CIE130 high exfficient	CIE-85/44 Non crystalline
Extruder Model	CIE130/33 single screw	CIE85/44 parallel double screw
Main motor power	185KW	200KW
Products thickness	0.15-1.5mm	0.15-1.5mm
Capacity	Max. 850kg/h	700-950 kg/h

PAR T1 THIS LINE CONSISTS OF (COMPULSORY)
1	Automatic vacuum feeding machine			1 set
2	High efficiency single screw extruder (90/33,120/33, 130/33) or Twin screw extruder(75/33, 85/44)			1 set
3	Hydraulic exchanging unit			1 set
4	Melting gear pump			1 set
5	T-type /hanger type die head (JC-Times brand)			1 set
6	Three Roller Calendars (alloy steel material )			1 set
7	Temp. controller			1 set
8	Cooling frame and edge cutting unit			1 set
9	Silicone coating &dryer			1 set
10	Haul off unit			1 set
11	Twin position sheet winder			1 set
12	Stacker			1 set
13	Electrical cabinet (ABB,Omron, RKC, Siemens etc)
14	Spare parts			1 set
PART 2 ACCESSORY MACHINE PARTS (OPTIONAL)
1	Air compressor		1 set
2	Industrial water chiller		1 set
PART 3 SHEET SPECIFICATIONS
1	Sheet width	600-1200mm
2	Sheet thickness	0.2-2mm
3	Type	PET single layer/mono layer sheets
4	Raw material	1. Can be virgin plastic pet material 2. Can be recyclable material, like PET Bottle Flakes
PART 4 SHEET APPLICATIONS
1	Packing, printing, stationery, art works etc.
2	Main Products: Gift/ad/file bag/lamp cover/food packaging

Model	CIE75/44	CIE85/44+52/40	CIE95/44+75/33
Sheet thickness	0.2-1.5mm
Sheet Width	Max. 1200mm
Machine Weight	26T	28T	30T
Total Power of Installation and Consumption	200KW/150KW	400KW./200KW	700KW/420KW
22000Overall Dimension	22000*5000*3000MM	22000*5000*3000MM	22000*5000*3000MM
Auto Grade	Full Auto
Brand of Main Electrical Parts	FALK, NSK, Siemens, etc.
Diameter of Roller	350/500/500MM or customized
Silicone coating Device	Included
Distribution Device	Included, more layers sheet can be made
Layers of Sheet	1 layer	3 layers	3 layer

Extrusion Screws
♦Special design of PET parallel twin-screw extruder; no need crystallize & dehumidify-dryer
♦Elements screw design meets more material applications
♦Four vents of barrel match the European technology vaccum system ♦Universal Extruder design for 100% PET flakes or mixture of virgin + flakes, also available for running PR HIPS, PLA.
L-shape 3 roll Calender
♦Special design of PP/PS sheet production processes, fastest cooling , highest accuracy
♦Standard of rolls stand is Vertical or Inclined
♦Rolls stand can also be designed as L shape, horizontal, etc. based on requirements
♦Rolls driven & controlled individually, also synchronized.
Silicone Coating&dryer
♦The coating roll opening and closing, and the drying box opening and closing are by air cylinder.
♦The coating oil is recycling.
♦Drying by special heating pipes and fan.
Haul Off unit
♦The speed controlled by servo motor separately or controlled synchronized with the calender speed.
♦With the safety line and the emergency stop \
♦With the statics remover for sheet surface
♦Upper rubber roller and lower steel roller
Winder
♦ With the special accounting system for the winding length
♦3 working positions, max. winding dia. 600mm
♦Winding by servo motor, turing by AC motor.
Electric control cabinet
♦SIEMENS PLC (HUMI) controls whole line, all production processes data display & save
♦Special adjust system for thickness change, high accuracy; low waste of material & time
♦SIEMENS Driver/ SIEMENS Servo controller are machine standard, with global Warranty
♦Other electric items by International famous brands as well, SIEMENS, ABB, YASKAWA. Etc.
The PET PP PS PLA SHEET applications: The PET sheet is widely used in vary industry such as food package, electronic parts package,drugs package, medical equipment package, microwave stove plate, stationery package, etc.
CIE EXTRUFORMING MACHINES(SHANGHAI) CO., LTD. is a high-tech enterprise certified by the state. The factory is located in Fengjing Economic Development Zone, Jinshan District, Shanghai. For many years, it has been committed to becoming a leading supplier of plastic extrusion equipment and plastic thermoforming equipment in the industry. Since its establishment, the company has always followed the business philosophy of "integrity; pragmatism, development and innovation", and has long focused on the exploration and innovation in the design, R & D, manufacturing, sales and after-sales service of plastic extrusion equipment and plastic thermoforming equipment, aiming at providing customers with first-class overall solutions for the industry. CIE has introduced advanced technologies from Germany and Italy, and combined with its own multi-functional advantages Years of R & D and manufacturing experience and application cases, continuously manufacturing high-end, efficient environmental protection and energy-saving intelligent extrusion equipment for the industry. At present, it has been exported to many countries in the world and won high recognition and praise from customers in the industry.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together. IF YOU WOULD LIKE TO KNOW MORE ABOUT US, PLEASE
