Braiding Machines for High Pressure Hydraulic Hose

Product Description

48-carrier wire braiding machine
Product description of wire braiding machine
* Braiding ID/OD of the hose: 30-75mm
* Rotation speed of the carrier:7.25r/min.
* Braiding angle:54°44″
* Pitch distance:66-166mm
* Pulling speed:29-72m/h
* No.of carriers:48 carriers
* Motor power:Y132M1-6 7.5KW
Technical data of single decker wire braiding machine

Wire Braiding Machine
Type No.	Braid ID (mm)	rotation speed of spindle(r/min)	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-16	4-10	24.8	54°44'	9-22	13-33	16	Y132M1-6 4.0KW
BG-20	6--13	19.8	54°44'	13-29	15-34.5	20	Y132M1-6 4.0KW
BG-24	10--31	14.25	54°44'	22--69	21--66	24	Y132M1-6 4.0KW
BG-36	15--45	10	54°44'	33--100	22--66	36	Y132M1-6 5.5KW
BG-48	30--75	7.25	54°44'	66--166	29--72	48	Y132M1-6 7.5KW
BG-64	51--110	4.56	54°44'	67--240	18.6--102	64	Y160L-6 11KW
BG-72	80--150	4.25	54°44'	170--330	44--83	72	Y160L-6 11KW
BG-96	150--400	2.75	54°44'	240--750	50--120	96	Y160L-6 11KW

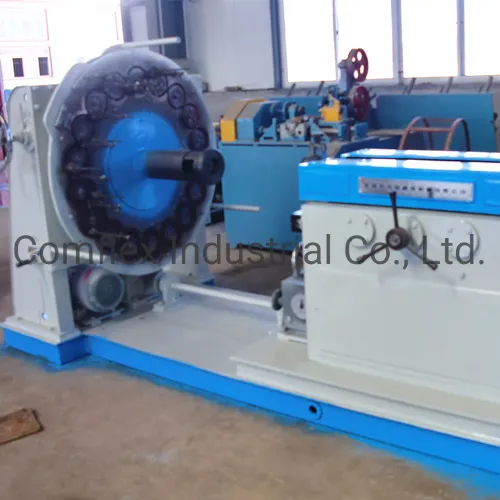

Product showing 96-carrier single decker wire braiding machine 48-carrier single decker wire braiding machin 24-carrier double decker steel wire braiding machine
Related products Wire braided hose
Wire mesh
FAQ for steel wire braiding machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30 years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing

We need to know the following information to quote you correct machineries:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
3. How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc..
