Gas/ Diesel Powder Coating Baking Curing Furnance Oven for Metal Coating Machinery
| US$15,300.00-15,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
COLO-5219
Type
Powder Coating Oven
Coating
Powder Coating
Substrate
Steel
Certification
CE, ISO, RoHS
Condition
New
Use for
Bake/Cure Powder in Workpiece
Core Components
PLC/Burner
Key Selling Point 1
Self-Produced and Sold
Key Selling Point 2
Lead The Industry
Applicable Industries 1
Hotels, Building Material Shops
Applicable Industries 2
Manufacturing Plant, Home Use, Printing Shops
Delivery Time
5-10 Working Days
Weight (Kg)
1000kgs
Voltage
220V/380V/415V
Dimension(L*W*H)
1900 Width X 1900 Height X 5000 Depth
Transport Package
Container
Specification
1800*5000*1900mm
Trademark
COLO
Origin
China
HS Code
8424899990
Production Capacity
5PCS/Month
Product Description

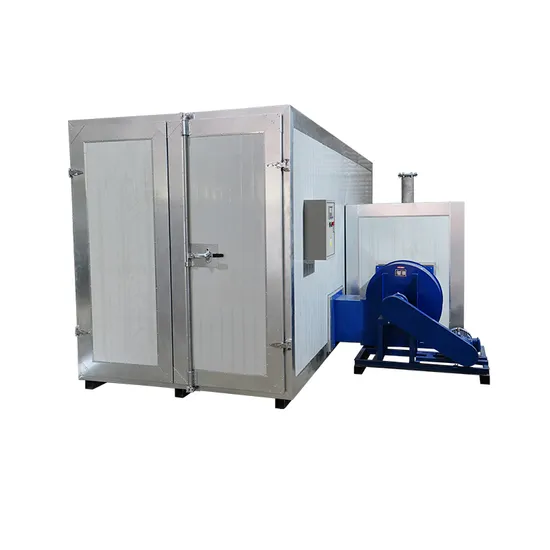

Gas/ Diesel Powder Coating Baking Curing Furnance Oven for Metal Coating Machinery Product DescriptionThis powder coating oven is designed for curing longer or large workparts in batches. It heats faster using gas or diesel as fuels, and fearures more economical with less energy expense and maintenance cost. The oven is built with durable and high-quality components that never compromise quality and performance.
Detailed Photos
Features of Large Powder Coating Oven
1. Using PLC system to control all heating process, accurate and conveninet.
2. Riello burner fully burns fuels (gas or diesel), quickly reach to required temperature.
3. Circulation fans causes uniform temperature in the entire chamber that results in quality cured finishes.
4. 100 mm thickness rockwool board always keeps the chamber with minimum heat loss.
5. We can custom powder coating ovens with required sizes, such as 6m, 7m, 8m, or more.
Product Parameters
| Model | COLO-5219 |
| Worksize Dimensions | Width1900 * Height1900 * Depth5000 mm |
| Overall Dimensions | Width2100 * Height2480 * Depth5200 mm |
| Power Supply | LPG / Gas / Diesel |
| Voltage/Frequency | 380V/220V (50-60Hz) |
| Warm-up Time | 15-30 min. (180° C) |
| Temperature Stability | < ± 3.0-6°C |
| Temperature | Max. 250° C |
| Transport System | Two trolleys |
| Burner | Italy Riello, 20,0000cal |
| Circulation/ Air flow | Vertical ,Variable through holes on the walls |
| Ventilation Performance | 8288-16576m3/h |
| Motor Power | 7.5kW |
| Warranty | 12 months |
Packaging and Loading:
Company Profile
Please contact us NOW to get the latest powder coating product catalog and price. Welcome to send an inquriy to us.
