High Quality Automatic Bridge Block Cutting Machine for Processing Middle Size Stone Blocks

Product Description

Product Description:

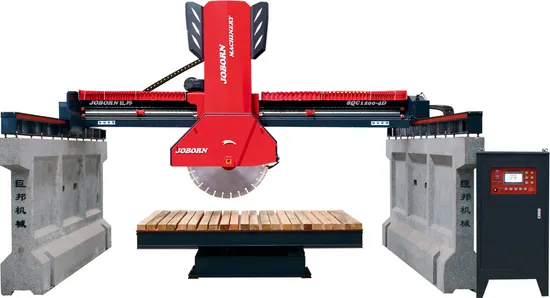

JOBORN SQC1200/1400/1600-4D Laser Middle Bridge Cutting Machine for Cutting Granite & Marble, Block Stone Cutting Machinery
JOBORN SQC1200/1400/1600-4D Middle Block Bridge Cutting Machine. This series machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, combination of chrome-plated guide pin and wear guide bush, with small gap, wearable, beautiful structure, and guide sleeve with multi-layer seals, with waterproof, dust-proof, anti-spill, improving the service life, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit specially cutting special-shaped stone, tombstone and curbstone.
Features: 1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable.
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
3.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
4.Inovance inverter, feeding more stable; imported or domestic premium brand electric components,with lower failure rate, help you to worry less and save more labor.
5.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
6.High quanlity standard exported laser device, with longer service life and more lasting brightness.
Super-heavy type working plaform
Taiwan famous brand hydraulic system
Humanized human-computer interaction interface
Imported and domestic premium brand electric components
Domestic famous efficient energy saving main motor
Export high quanlity laser marker
Steel rigid base(Optional)
Single-beam lifting machine(Optional)
Processing Display:
Technical Parameter:

SQC1200/1400/1600-4D Middle Block Bridge Cutting Machine
Appellation	Unit	SQC1200-4D	SQC1400-4D	SQC1600-4D
Max.Diameter of saw blade	mm	1200	1400	1600
Max.lifting stroke of cutter	mm	750
Dimension of worktable	mm	3000x2000
Worktable rotation range(Optional)	degree/°	0,90,0~360(45° one position every 45°)
Max.thickness of cutting	mm	450	550	650
Water consumption	m³/h	5
Power of main motor	kW	30/37
Total power	kW	36/43
Dimension(LxWxH)	mm	6200x4800x4200	6200x4800x4400	6200x4800x4600
Weight	kg	7200	7400	7600

Customer Spot:

FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
