High Speed Steel Rebar 2 Sides Ribbed Making Machine Steel Bar Ribbing Machine

Product Description

Product Description

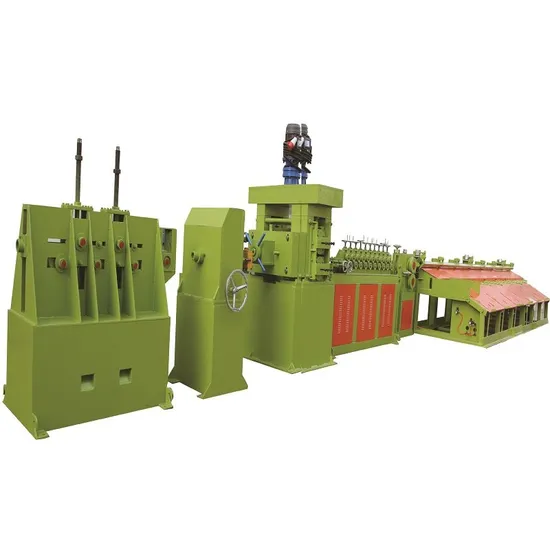

rebar making machine is a kind of machine use for rolling coil wire from big diameter to small diameter, out put can be ribben type or round type. Input diameter could be special making according your local rod material.
Production flow:
Wire pay-off --- Rust remover ---Scaling and reducing wire machine --- Wire milling machine --- Wire coiling machine --- Finished product rack
Product Parameters

Item	Unit	BY1500T	BY2000T	BY3000T
input wire diameter(max)	mm	φ13.5	φ14	Φ16
output wire diameter	mm	Φ4-12	Φ4-13	Φ4-14
Power	KW	37.5	66	80
Rolling speed	m/min	75	120	150
Cutting length	m	1.5-12	1.5-12	1.5-12
Motor of flying shear	KW	5.5	7.5	15
weight	T	4	6	7.5
loading capacity	T	1	1	2

Product Feature
High Speed Steel Rebar 2 Sides Ribbed Making Machine Steel Bar Ribbing Machine
A. The reducer adopts the international reducer, which has large torque, low noise and strong durability.
B. The double-side reel is coated with cemented carbide or wear-resistant material.
C. Adopting the most advanced frequency conversion or electromagnetic technology in the world, it can save 40-60% of electricity, the lowest power consumption per ton is 8-10 degrees, the line speed can reach 90-230 meters per minute, and the production efficiency is improved by more than 40%. Protection of power transmission and transformation systems and electrical equipment is not damaged, which can greatly extend the service life of the machine.
D. rolling the shell body is cast with 45# pure steel, never cracking (Note: other manufacturers cast iron casting). The rolling mill turbine structure is integrated into one, and it is cast in 45# pure steel. It has no components, large pulling force, wear resistance, continuous teeth and durability.
E. bracket with cast steel adjustable bracket

Deformed rebar cold rolling ribbed wire machine

Option 1:straight wire machine :
The straightening machine adopts multi-wheel synchronous straightening technology, which has good straightening effect and little damage to the steel bars.


Option 2:Spool recoiler The Spool recoiler , either automatic hydraulic recoiler or common spool recoiler for your choice.

Finished product
