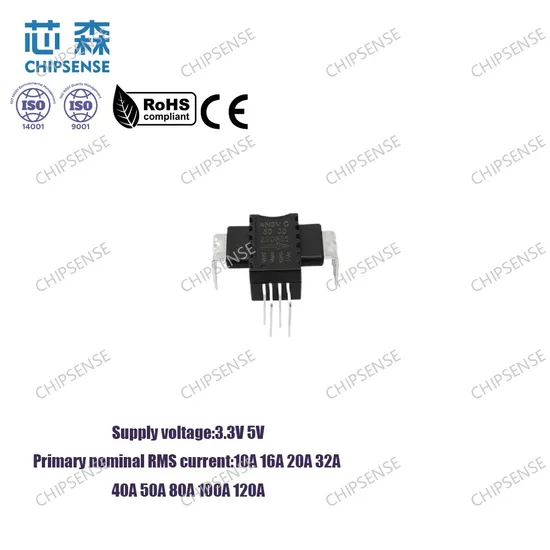

AN3V 100 PB30 ASIC technology ACS770 HLSR High quality miniature Current Sensor PCB type Alternative for wind energy inverter

Product Description

Product Parameters

Electrical characteristics

Parameter model number

AN3V 10 PB30

AN3V 16 PB30

AN3V 20 PB30

AN3V 32 PB30

AN3V 40 PB30

AN3V 50 PB30

AN3V 80 PB30

AN3V 100 PB30

AN3V 120 PB30

/PN

Primary nominal RMS current

0~±10

0~±16

0~±20

0~±32

0~±40

0~±50

0~±80

0~±100

0~±120

A

/PM

Primary current,measuring range

0~±25

0~±40

0~±50

0~±80

0~±100

0~±125

0~±200

0~±250

0~±300

A

Min

Tye

Max

VC

Supply voltage

3.135

3.3

3.465

V

IC

Current consumption

6.5

11

mA

RL

Load resistance VOUT

5.1

kΩ

RREF

Load resistance VOUT

5.1

kΩ

CL

Load capacitor VOUT

1.0

10

nF

VREF

Reference voltage

1.63

1.65

1.67

V

VOUT-VREF

Output voltage

-1.15

1.15

V

VOE

Electrical offset voltage

-5

5

mV

VOUT-VREF@ IP=0A

TCVOE

Temperature coefficient of VOE

0.4

6.0

mV

@TA=-40ºC~105ºC

εL

Linearity error

-0.5

0.5

% of /PN

Exclusive of VOE

X

Accuracy @/PN

-1

1

% of /PN

tr

Response time@ 90% of /PN

2.5

µs

@CL=1.0nF

BW

Frequency bandwidth(-3dB)

250

kHz

@CL=1.0nF

Certifications
