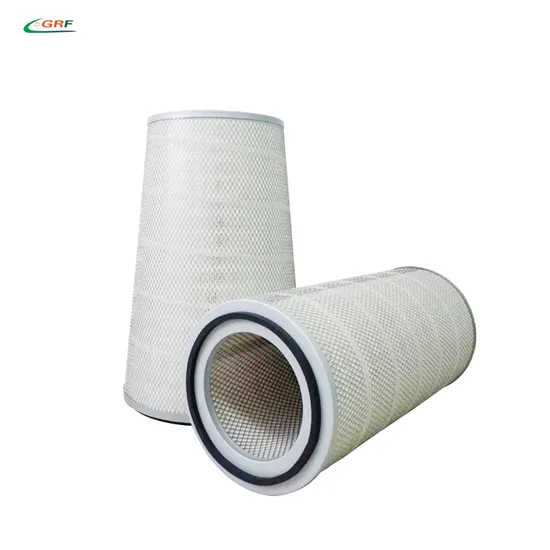

Grf Cylindrical Conical Air Intake Filter Cartridge Filter Gas Turbine Air Filter

Product Description

Product Description1Applications:Gas Turbine Power Plant 2Test Report
Manufactured with the highest quality materials available on the market, guaranteed!We guarantee the highest quality products available. Our replacement filters are guaranteed to meet or surpass all OEM specifications.
Product Parameters

Cylindrical
Length	Inner Diameter	Outer Diameter	Number Of Pleat	Depth Of Pleat	Surface Area
660MM	215MM	324MM	310	50mm±1mm	18 m²
End Cap	Rated Air Flow	Temperature	Humidity	Dust Holding Capacity	Filter Media
ID 215mm OD 324mm	1105 m³/hr	5ºC~45ºC	60%~90%	≥1700G	Synthetic
Conical
Length	Inner Diameter	Outer Diameter	Number Of Pleat	Depth Of Pleat	Surface Area
660MM	Upper215MM Lower330MM	Upper324MM Lower445MM	375	50mm±1mm	22 m²
End Cap	Rated Air Flow	Temperature	Humidity	Dust Holding Capacity	Filter Media
L:OD445MM&ID330MM S:OD324MM&ID215MM	1445 m³/hr	5ºC~45ºC	60%~90%	≥1900G	Synthetic

ExperienceGT Air Intake Filter For Bangladesh Mymensigh Power Plant
GT Air Intake Filter For Bangladesh Siddhirganj 335 MW Power Plant
Related Products1 PRE-FILTER PAD FOR GAS TURBINE POWER PLANT
2 POCKET FILTER FOR GAS TURBINE POWER PLANT
3 AIR FILTER BOX FOR GAS TURBINE POWER PLANT
Customized ServiceGRF also provide customized products,If You Intend To Make Your Design Please offer us specification,drawing,material,and photo to reference.
Manufactured with the highest quality materials available on the market, guaranteed!We guarantee the highest quality products available. Our replacement filters are guaranteed to meet or surpass all OEM specifications.
CertificationsISO Certification
IRIS Certification
Company ProfileGRF have specialized in air filter,oil filter and fuel filter 15 years.
Guangzhou Railway Locomotive Fittings Works Co.,Ltd., is located in Huadu District, Guangzhou, close to Guangzhou New Baiyun International Airport and Guangzhou North Station. The company was established in 1998 and is a designated manufacturer of important parts for rolling stock of China Railway Corporation (formerly the Ministry of Railways) and a member of the standardization technical committee for diesel locomotives in the railway industry.
Speciality Scope:Air filter, oil filter, fuel filter, gas turbines filter, aviation oil filter, fan filter, side wall filter,car body filter, oil Type conveying unit, oil-gas separator, oil-water separator seal,air inlet filter silencer module and Automatic dust cleaning system device,fresh air filter, compressed air filter, etc.

FAQQuestions & Anwsers:
Q: How about the quality of GRF Filter?
A. GRF Is the Member of the Technical Committee of Diesel Locomotive Standardization of the Chinese Academy of Railway Sciences.
Awarded ISO90001 (TUV Rheinland)And IRIS Certicificate.
Q: Could we supply samples?
A.Yes, we offer free samples, but shipping charges will be paid by buyer.
Q. What's the delivery time?
A. Generally, goods will be sent around 15-30days.
B. Stock goods will be sent within 7 days once we receive payment.
Q. What's our loading port?
Huangpu Or Nansha port.
Q. What's our shipping ways?
A. By sea, air, land.
