75m3/H Mobile Automatic Portable Mini Concrete Batching Plant Manufacturer
| US$50,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
75m3/H Mobile Concrete Batching Plant
Machining Process
Automatic Controlled Production Line
Structure
Spiral Type
Productivity
75m²/h
Feeding Height
4200mm Mini Concrete Batching Plan
Certification
CE, ISO9001: 2008 Mini Concrete Batching Plan
Condition
New
Color
as Request Mini Concrete Batching Plan
Discharge Height
3.8m
Mixer Volume
1500L
Aggregate Batcher
PLD2400
Max.Hauling Speed
40km/H
Controlled Method
Full Automatic Computer Control
PLC
Omron or Siemens Make
Electrical
Schneider
Aggregate Feeder
Belt Conveyor
Cement Silo
50/100t Bolted Type
Power Source
380V, 50Hz, 3 Phase
Name
75m3/H Portable Mini Concrete Batching Plant Manuf
Transport Package
Standard Packing of Concrete Plant for Internatio
Specification
Output Capacity(75Cbm/h)
Trademark
FOCUS
Origin
Zhengzhou, China
HS Code
8474310000
Production Capacity
20 Sets Per Month
Product Description

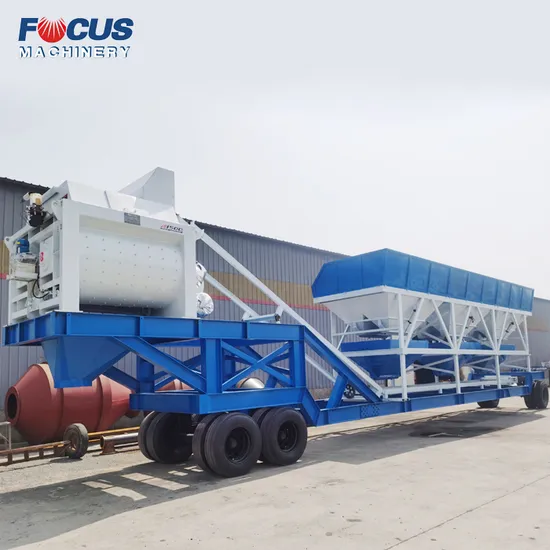

75m3/H Mobile Automatic Portable Mini Concrete Batching Plant ManufacturerProduct Description
portable concrete batch plant is suitable for production and supply of ready-mixed concrete, construction of engineering projects or large and medium-sized concrete precast factory. Special for the construction projects and easy to transfer job site.
Detailed Photos
Adopt double shaft concrete mixer, the mixing arm has high wear resistance and strong impact resistance. The mixer saves time and energy and mixes evenly.
Adopt PLD series dosing machine, 2-4 bins are optional, and automatic unloading. Electronic weighing with an accuracy of 2%.
Smooth operation, automation, centralized control, continuous transportation and other advantages. Excellent material selection, using double-layer structure bucket belt and herringbone belt to choose from (Can be made according to the actual needs of customers).
Remote management, intelligent control, equipment with alarm correction, operation monitoring and other functions.
LSY219, LSY273 and LSY325 screw conveyors can be made according to the needs of the site.
The main structure is made of O235 high-quality carbon steel, which has good toughness, strong bearing capacity, corrosion resistance and is not easy to break.
Product Parameters
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 |
| Capacity | 25m3/h | 35m3/h | 50m3/h | 75m3/h |
| Mixer Model | JS500 | JS750 | JS1000 | JS1500 |
| Mixer Power | 18.5Kw | 30Kw | 37Kw | 2*30Kw |
| Discharge Height | 1500-3800mm | |||
| Discharge Volume | 500L | 750L | 1000L | 1500L |
| Charging Volume | 800L | 1200L | 1600L | 2400L |
| Mixing Cycle | 60S | |||
| Max. Agg. Size | 80/60mm | |||
| Loading Way | Belt conveyor | |||
| No. of Storage Hopper | 3 | 3 | 4 | 4 |
| Agg. Silo Capacity | 4m3 | 4m3 | 5m3 | 5m3 |
| Agg. Weighing Accuracy | 2000Kg±2% | 2000Kg±2% | 4000Kg±2% | 4000Kg±2% |
| Water Weighing Accuracy | 200Kg±1% | 200Kg±1% | 250Kg±1% | 300Kg±1% |
| Cement Weighing Accuracy | 250Kg±1% | 300Kg±1% | 500Kg±1% | 600Kg±1% |
| Additive Weighing Accuracy | 25Kg±1% | 25Kg±1% | 30Kg±1% | 30Kg±1% |
| No. Of Wheels | 2 | 2 | 2 | 2 |
| Dragging Way | 360 Degree bayonet | 360 Degree bayonet | 360 Degree bayonet | 360 Degree bayonet |
| Control System | Fully automatic/Manual | |||
| Total Power | 51KW | 75KW | 105KW | 145KW |
| Total Weight | 22t | 28t | 32t | 35t |
