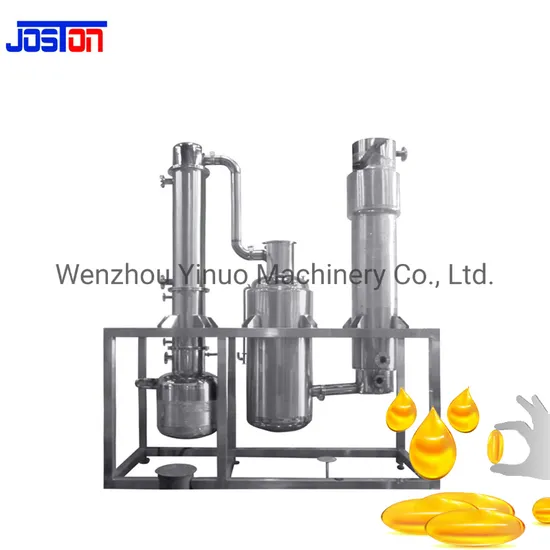

Joston Vacuum Distillation Ethanol Recovery Stainless Steel Tube Falling Film Evaporator

Product Description

hemp oil is a natural product extracted from hemp, which is different from other hemp extracts. It is not addictive and hallucinogenic. It has high medicinal value. At present, hemp oil has been proved that it can treat epilepsy, improve mood, reduce the dependence of human body on alcohol and nicotine, resist anxiety and inflammation, relieve joint and nerve pain etc .
Hot Selling Distillation Equipment hemp Oil Condenser Energy-Saving SS316L Industrial Evaporator Machine is mainly used to evaporate the ethanol or other solvent from the hemp extractor solution for the production process .
Stainless Steel hemp Oil Ethanol Pharmaceutical Falling Film Distillation Evaporator Concentrator Machine is used for low-temperature evaporation of liquid in hemp extractor industries.
Stainless Steel hemp Oil Ethanol Pharmaceutical Falling Film Distillation Evaporator Concentrator Machine can continuously feed in the raw material and output the hemp oil materials. The material has short heating time and low evaporation temperature. The liquid can meet the required concentration requirements once passing through the equipment. It has little effect on the color, flavor and nutrition of the product, and is especially suitable for evaporation of heat sensitive materials .
Working principle of Hot Selling Distillation Equipment hemp Oil Condenser Energy-Saving SS316L Industrial Evaporator Machine:
The material is evenly distributed on the inner wall of the falling film pipe from the top of the falling film chamber through the film distribution device, and flows from top to bottom under the action of its own gravity and secondary steam flow. At the same time, it exchanges heat with the heated steam on the outer wall of the falling film pipe and evaporates. The evaporated material and secondary steam enter the separation type for gas-liquid separation, and the material is sent out through the discharge pump, if the concentration of the material fails to meet the requirements Through the plunger valve, the steam volume is adjusted to ensure the concentration of the outlet material. The secondary steam enters the service condenser and is cooled with cooling water. The non condensable gas is sucked out by vacuum pump, and the system is guaranteed to work under vacuum at the same time.
Characteristics of falling film evaporator:
1. The falling film evaporator has the characteristics of high thermal efficiency and short heating time because of the uniform heating of steam and liquid film flow evaporation.
2. The material flows down the inner wall of the tube to accelerate evaporation, which is suitable for evaporation of high viscosity liquid.
3. Because the material film evaporates in each tube, the heating time of the material is very short, which is very beneficial to food evaporation and can preserve a large number of nutrients in food.
4. In the process of vacuum evaporation, the requirements of sanitation and environmental protection are ensured, and the evaporation temperature is greatly reduced. In addition, with the configuration of the pump, part of the steam is absorbed by the hot pressure pump and remixed with the fresh steam, so as to save steam. The steam enters the heating pressure pump through the spray fog, and the steam spreads rapidly to heat the concentrated liquid, Very suitable for heat sensitive materials.
5. The falling film evaporator is suitable for the evaporation and concentration of foaming materials. The liquid forms a film evaporation in the heating tube to form a gas-liquid separation. At the bottom of the effect body, only a small amount of material liquid and all the secondary steam enter the separator for separation. There is not too much impact in the whole process to avoid the formation of foaming.
6. The falling film evaporator is equipped with automatic system, automatic control of feed and discharge, automatic control of heating temperature, feed concentration, system cleaning, etc.

Model	DE100	DE250	DE500
Evaporation	100L/H	250L/H	500L/H
Heating power	24KW	48KW	96KW
Cooling power	6.3KW	11.05KW	13.6KW
MOQ	1	1	1
Size	760*680*2000mm	1200*900*3000mm	1600*1100*2600mm
Weight	400kg	750kg	1200kg

SERVICEWe have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)FAQ1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.How long the warranty will be?
We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .
4.Which kind payment do your company do now ?
We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.
5.Can we become your distributor in our country?
Yes, we very welcome you! More details will be discussed if you are interested in being our agent.
6.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
7.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
8.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
9.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.
10.how about your company after-sale serivce ?
1. We provide long-term after-sale service.
2. we can do installation and commission for the equipment in your plant if necessary .
3. Meanwhile, you can call or e-mail us to consult on any relevant question since we have a special line for after-sale service. Alternatively, you can communicate on-line with us to solve any problem.
