Famous and Good Price Offset Prepress Thermal CTP Plate Processing Machine

Famous and Good Price Offset Prepress Thermal CTP Plate Processing Machine

US$6,600.00-7,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
TPD
Structure
Developing System
Developing Method
Mechanical Spray
Page
Single Faced
Automatic Grade
Automatic
Developering Supplementary
Boot Supplement
Drying System
Air
Developing Machine Debugging
Parameter Setting
Max. Plate Width
1700mm
Developer
96L
Plate Thickness
0.15-0.4mm
Developer Temperature
15-40degree
Drying Temperature
30-60degree
Weight
850kg
Transport Package
Wooden Case
Specification
860
Trademark
DB
Origin
China
HS Code
8442302900
Production Capacity
1000sets/Year

Product Description

Brief introduction

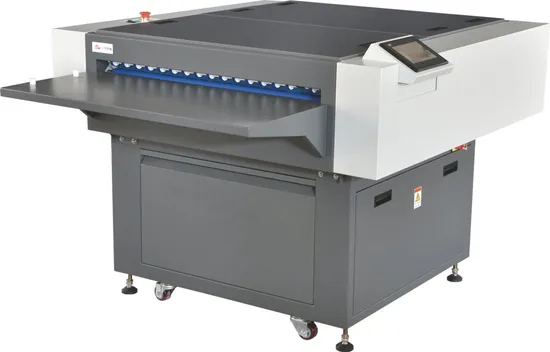

Computer- controlled automatic thermal ctp plate processor SZ-TPD series are included steps as follow: developing, washing, gumming, drying. Unique solution cycle ways and accurate temperature control, guarantee accurate and uniform screen-point reappearance.
Technical parameter
Model TPD860 TPD1100 TPD1250 TPD1350 TPD1450 TPD1650
Max.plate width 860mm 1100mm 1250mm 1350mm 1450mm 1650mm
Dev.liter 40L 60L 60L 70L 90L 96L
Min.plate length 350mm 400mm 400mm 400mm 500mm 500mm
Plate thickness 0.15-0.4mm
Dev.temp 15-40ºC
Dry.temp 30-60ºC
Dev.speed(sec) 20-60(sec)
Brush.speed 20-150(rpm)
Power 1Φ/AC220V/30A
Net.weight 380Kg 470Kg 520Kg 570Kg 700Kg 850Kg
Machine size (mm) (online) 1370×1350×1050 1465×1640×1050 1565×1790×1050 1565×1840×1050 1660×1990×1050 1670×2190×1050
Machine size (mm)(offline) 1670×1350×1050 1760×1640×1050 1865×1790×1050 1865×1840×1050 2010×1990×1050 1970×2190×1050
