Copper Clad Sheet for PCB Usage /CCL Board

Product Description

Product Description

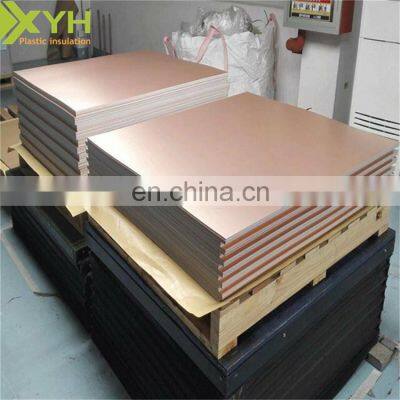

Copper Clad Sheet for PCB Usage /CCL Board
Description of FR4 Copper Clad Laminate Sheet :
G-10 / fr4 combines a woven glass fabric and an epoxy resin laminate (tg approximately 130°c) that contains bromine. The product provides consistent quality and good electrical properties under dry and humid conditions, as well as high flexural, impact, and bond strength at room temperatures. This product is suitable for a variety of structural, high humidity, and electrical insulation applications, which include terminal boards, lapping carriers, and disc and microelectronics polishing. Np510a complies with the requirements of mil-i-24768/27, type gee-f.
Feature of FR4 Copper Clad Laminate Sheet :
1.Fire Retardant / Corrosion Resistant
2.Electronic Manufacturing Facilities
3.Meat Processing Plants
4.Plating Facilities
5.Bottling Facilities

Sr.	Performance	Unit	Test method	Index value
1	Vertical layer direction bending strength	MPa	GB/T5130 section 5.1	≥ 152
2	Parallel layer direction compact strength(Simple strut-beam)	KJ/m2	GB/T5130 section 5.5	≥ 25
3	Parallel layer direction compact strength(Suspended arm beam method)	KJ/m2	GB/T5130 section 5.5	≥ 26
4	Relative dielectric factor (1 MHZ below)		GB/T5130 section 6.2	≤5.5
5	Mediate loss factor(1 MHZ below)		GB/T5130 section 6.2	≤ 0.04
6	Vertical layer direction electric strength at (90±2)°c oil.	MV/m	GB/T5130 section 6.1	Refer to table 2
7	Parallel layer direction breakdown voltage at (90±2)°c oil.	kV	GB/T5130 section 6.1	≥ 15
8	Insulation resistance after water dipping	Ω	GB/T5130 section 6.3	≥ 3.0 × 108
9	Density	g/cm3	GB/T5130 section 8.1	1.7-2.0
10	Water absorption	mg	GB/T5130 section 8.2	Refer to table 3

Application of Copper Clad Laminate Sheet :
1.Chemical Processing Plants
2.Electronic Manufacturing Facilities
3.Meat Processing Plants
4.Plating Facilities
5.Bottling Facilities
Company Information
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.
Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.
3. Insulation Machining Parts Series : Customized according to the customers’ drawings and designs,welcome to contact us for more details.
Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam, Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
If you are interested in doing business with us, freely send your inquiry and warmly welcome to visit our website to check more information and products details.
Our experienced and knowledgeable staff will meet your needs and exceed your expectations.
Certifications
FAQ
Q: Can I have details about your company?
Yes, you can. We are a Manufacturer , one of market leader for Engineering Plastic , Insulation material , also Processing Products and Plastic Displays Stand in china , more than 17 years experiences with 2 own factories , more than 80 worker.
Q: Where is your company?
The company is located in NO 41 GUIPING RD.HE'AO COMMUNITY.HENGGANG STREET.LONGGANG DIST,SHENZHEN.GUANGDONG,CHINA 518172, Shenzhen, Guangdong.
Q: How can I get a sample?
A: Before start your sampling, we need to confirm product details with you including specification to avoid any possible misunderstanding.
Q: How long for sampling?
A: It usually needs 2 days. The actual time is up to how many sample orders we receive.
Q: What’s MOQ?
A: The MOQ is mainly decided by the specific product,the MOQ is one piece for sample.
Q: If I have some idea, can you help me?
A: Yes, we would be very pleased to do it. Once you have some idea please send it to us. We would be able to assist you to finish it. You can contact us
