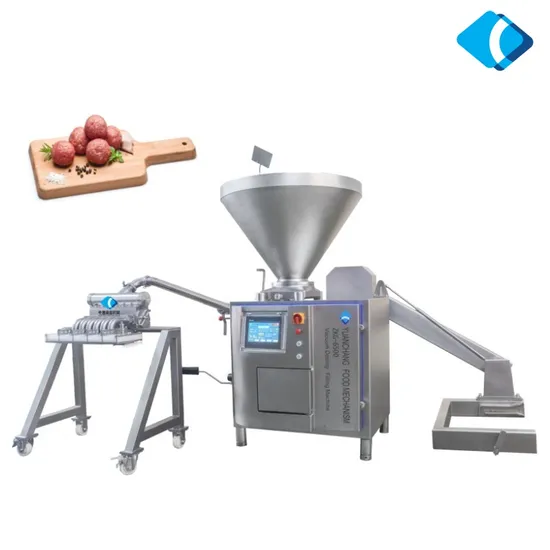

Vacuum Quantitative Sausage Filler-Meat Forming Machine

Product Description

meat-processing-machinery
Product Description:
Suitable for filling and shaping materials such as meat products, sausages, dairy products, fish products, ready to eat foods, cooked foods, pet food, etc. After the installation of the molding device, the material can be quantified in grams. By changing the forming mould, Rice-meat dumplings, strips of meat or rectangular, square, diamond and other shapes can be made.
It can also be used for the processing of pet food.

model	Quantitative Rang(g )	Power (KW)	Meatball Output port	Hopper Capacity(L )	Voltage(V )	Forming mold	Size(mm )
ZKG-MF	1-9999	10.8	2/4/6/8 Customizable	240	380	Customized replacement	3450*1180*1800

Application:
YC sausage vacuum quantitative filling machine is used for quantitative filling and twisting under vacuum condition, preventing fat oxidation and protein hydrolysis,reducing the amount of bacteria,extending the shelf life of product.
Advantages and characteristics:
1. Independent R&D CNC system
2. 8.4 inch true color LCD
3. special industrial keyboard
4. water-proof front panel
5. humanize designed control interface,intuitive and clear ,
6. Japan servo motor
7.German decelerator
8. high quality vacuum pump
9. apply to/suitable for natural casing,collagen/protein casing,smoke casing twisting
10. drive mode:AC servo motor
11. twisting tube size:Φ10, Φ12, Φ14, Φ16, Φ19, Φ22 (three optional)
12. clipping and filling tube:Φ16, Φ22, Φ28, Φ30, Φ40 (three optional)
13. impeller,blade and pump body is designed with high hardness,high wear-resisting stainless steel,and the master body adopts 304 stainless steel.
Parameter:

model	Quantitative range (g)	Power (kw)	Filling and twisting speed (time/min)	Quantitative deviation (minced meat) (g)	Hooper volume (L)	Voltage (V)	Weight (kg)	Size (mm)
ZKG-3000	6-9999	7.9	0-600	±2	160	380	590	1350x861x1710
ZKG-3500	6-9999	8.35	0-600	±2	240	380	630	2450x1180x1800
ZKG-6500	6-9999	10.5	0-600	±2	240	380	750	2450x1180x1800
ZKG-9000	6-9999	12	0-600	±2	240	380	830	2450x1180x1800
