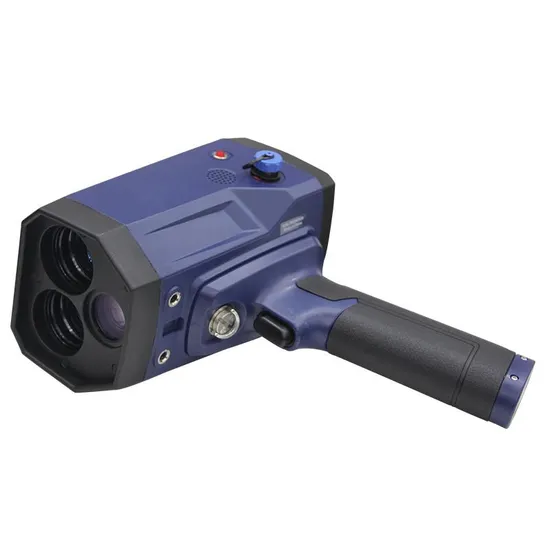

Lidar Speed Gun Used for Vehicle Speed Measurement

Product Description

Product Description
1.4.3-inch color touch screen display, clear and convenient readings
2.Class 1 human eye safety laser
3.Speed range 320km/h, speed accuracy 2km/h, distance accuracy 300m
4. With GPS function, voice prompts, humanized design
5. Support 16GBSD card, recording dynamic image law enforcement forensics
6.RS232 serial communication port; USB2.0 image data transmission
7. Novel design, compact style, lightweight, high sensitivity, long-time work
Application areas: traffic speed measurement, road plant, highway, field training, sports and so on. Product Parameters

performance
Best focus distance	70 meters (230 feet)
optimal operating range	Handheld 15-90 meters (50-295 feet)
	Tripod mode 15-100 meters (50-328 feet)
Speed measurement accuracy	±2 km/h, ±1 mph
Speed range	0 km/h~320 km/h; 0 mph~200 mph
Ranging accuracy	±30 cm, ±12 inches
Speed display resolution	Speed 1 km/h, 1 mile/h
Distance display resolution	1 meter, 1 foot
Minimum speed measurement distance	Measurement mode ≤10 meters, weather mode 60 meters (automatic software recognition)
Farthest ranging distance	It can reach 600-700 meters in speed measurement mode; 1200 meters in distance mode.
Speed test time	0.33-0.67 seconds
Speed measurement unit	kilometers per hour/miles per hour/meters per second
unit of distance measurement	meters/feet/yards
Laser wavelength	905 nm
Laser beam divergence	2.5 mrad
eye safety	FDA Class1 (CFR21)
Mechanical structure
Body weight	1.55kg
size	197X124X316mm
environment	IP65 waterproof/dustproof
operating temperature	-10~+60ºC(14~140ºF)
Charging temperature	0~+45ºC(32~113ºF)
stored temperature	-20~+60ºC(-4~140ºF)
hardware
processor	ARM DM368
Snapshot data storage	Removable SD card, 16GB
SD file system format	MS-DOS (FAT16, FAT32)
	Linux (EXT2, EXT3)
show	4.3 inches (10.9 cm), 480X272 pixels, color, touch screen
camera	2 million high-definition industrial CCD camera (1600X1200)
camera lens	75mm, fixed focus
GPS
receive channel	20
Maximum update speed	1Hz
maximum height	18,000 meters (59,000 feet)
Maximum speed	515 meters/second (1689ft/sec)
Sensitivity	Get -142dBm, Track -159dBm
Get Time	Hot start 1 second
Cold start	less than 60 seconds
Reacquire	<1.5 seconds
Accuracy	horizontal position
average	5 meters (7.2 feet)
maximum	10 m (32.8 ft), spontaneous; 5 m (16.4 ft), SBAS corrected
vertical position	Average 0 m (0 ft); maximum 15 m (49.2 ft); horizontal speed 0.1 m/s (0.3 ft/s); time accuracy synchronized with GPS; 1 microsecond
Real Time Clock	CR3032 backup battery 20PPM, can be used for 3 years without battery pack
Input/output (I/O)	RS232 serial communication port; USB2.0 image data transmission; resistive touch screen input; 6 button input (including trigger)
power
Battery	7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, provides 5-7 hours of operation
battery charger	110vac~240vac 50/60Hz input
Power consumption	5 watts
software
operating system	Linux operating system, customized device driver
Anti-interference	Automatic anti-interference
Video size	Standard format, 640X240 pixels
Still image size	1600X1200 pixels
maximum record size	Unlimited, related to memory
data encryption	AES-128
other
Measurement mode	Continuous, locked, automatic, video tracking mode, ranging mode, video mode
Voice prompts	Speed and sound synchronization
language	English, Chinese
tripod	Support (ordinary camera tripod interface)
configuration list	Suitcase, host, battery handle*2, charging base, charging head, serial port output cable, tripod converter, manual, lens cleaning cloth, warranty card,

Detailed Photos
