Nz01c Diamond Dresser for Grinding Wheel Dresser CBN Wheel Truing and Dressing Machine China Super High Quality
Basic Info.
Model NO.
NZ-01C
Type
Tool Grinding Machine
Processing Object
Carbon Steel + Tungsten Steel Alloy Drill Bit
Abrasives
Carbon Steel + Tungsten Steel Alloy Drill Bit
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
CNC Cutting Tools Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New, New
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Open-Loop Control
Numerical Control
CNC/Mnc
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
After-Sales Service
10
Power
15kw
Machine Weight
1500kg
Voltage
380V
Specification
NZ-01C
Trademark
Naseiko
Origin
China
Production Capacity
10000PCS/Year
Product Description
Detailed PhotosProduct Description

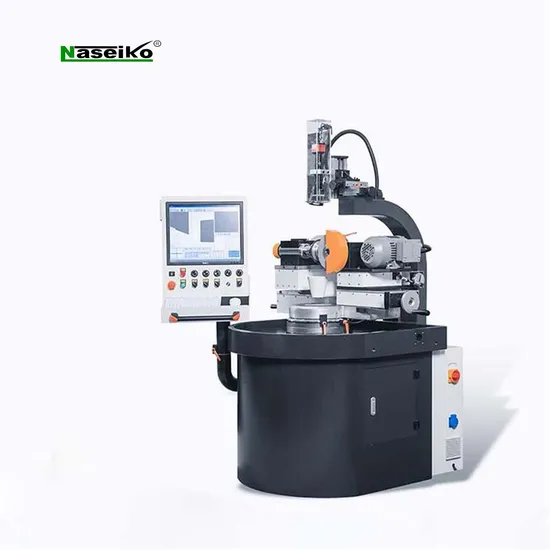

It could not only trim diamond and CBN grinding wheel, but also the flat and side surface, angles, outer arcs and formed grinding wheel, as well as single and multiple grinding wheels.
Ideal for grinding diamond and CBN grinding wheel, as well as other types of grinding wheels with convient and efficient effect.
Easy to operate with high accuracy grinding wheel. The principle is the speed difference between the repaired and dressing
The repaired wheel is for diamond and CBN grinding wheel, while the grinding wheel is green silicon carbide grinding wheel.
The repaired grinding wheel could be adjusted in X-axis and Y-axis.
The dressing wheel could be adjusted in rotating A-axis, X1-axis and Y-axis directions with variable speed frequency reciprocating oscillation. The X1-axis and Y1-axis could be rotated and positioned for achieving 180 °
rotation of the whole grinding wheel.
Equipped with a CCD optical measurement system, grating ruler digital display measurement system, 10 Up to 100x magnification system and LCD display
Product Parameters
| PROJECT | UNIT | NZ-01 |
| Diamond grinding wheel spindle | - | BT40 / HSK50 /(or customized) |
| Maximum diameter of diamond grinding wheel | mm | Φ350 |
| Minimum diameter of diamond grinding wheel | mm | Φ50 |
| Maximum width of diamond grinding wheel | mm | 40 |
| Diamond grinding wheel speed | rpm | 0-1500(continuously variable speed) |
| Diamond grinding wheel motor | kw | 0.75 |
| Left and right movement distance of diamond grinding wheel | mm | 135 |
| Forward and backward movement distance of diamond grinding wheel | mm | 135 |
| Diamond arc size | mm | Φ0.05-40 |
| Dressing wheel (silicon carbide) diameter | mm | Φ180 / 10 / ψ32 |
| Dressing wheel speed | rpm | 0-2800 |
| Motor Power of dressing grinding wheel | kw | 0.75 |
| Number of swinging times of dressing grinding wheel | rpm/min | 0-50(continuously variable speed) |
| Length of swinging of dressing grinding wheel | mm | 0-50(adjustable) |
| Swing motor power of dressing grinding wheel | kw | 0.025 |
| X-axis and Y-axis optical ruler device | mm | 0.001 |
| CCD and high-definition lens | piece | 1 |
| Data acquisition card | set | 1 |
| Lens holder | set | 1 |
| Lens cross workbench | set | 1 |
| LED bottom light | piece | 1 |
| LED upper light | piece | 1 |
| Computer host | piece | 1 |
| LCD display screen | inch | 19 |
| Loading the EDIS measurement system | set | 1 |
| Power supply voltage | - | 380V,50HZ |
| Total power | kw | 1.5kw |
| Machine size (length × wide × High) | mm | 1600 / 1200 / 1800 |
| Total weight of the machine | kg | About 1500 |
