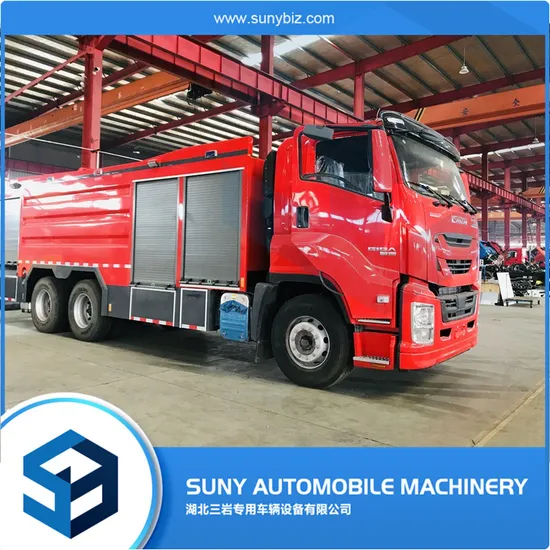

16m3 Fire Rescue Truck Fire Fighting Vehicle Water Tank Fire Truck

Product Description

Fire fighting truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue.It could be transport the firemen to the fire field and provide different kinds of rescue tools. The normal fire fighting truck could be divided into: water tank fire truck, water and foam tank fire truck, pumping fire truck, elevated fire truck, scaling ladder fire truck, etc.
Water Foam Fire Engine
GIGA 10 Wheels 16 m3 Fire Fight Rescue Truck
Detailed specification:

Vehicle Description
Overall dimensions	10050*2500*3670mm
GVW	26800kg
Curb weight	14350kg
Chassis brand	ISUZU
Traction type	6*4

Tanker Description
Tanker capacity	Water tanker	12cbm, carbon steel
	Foam tanker	4cbm, carbon steel
Configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.
Fire pump	Model	CB10/60, normal pressure pump
	Flux	60L/S
	Pressure	1.0Mpa
	Range	55m
Fire monitor	Model	PL48
	Pressure	1.0Mpa
	Range	Water	60m
		Foam	55m
	Rotation angle	360°, up 750, down 450
Other configuration	Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment.

Chassis Description
Chassis model	ISUZU
Cab	ISUZU-extended cab, 6-standard seats, safety belt with double locking mechanism, exterior sunroof, air-conditioner.
Wheelbase	4600+1350mm
Tire specification	11.00R20
Tire quantity	10+1 units
Engine	Engine model	6HK1-TCSG40
	Horse power	280hp
Gear box	Model	9JS119TA
	Number of gears	9 forward gears& 1 reverse
Axle	Front	HF-7T
	Rear	ST-18T*2
