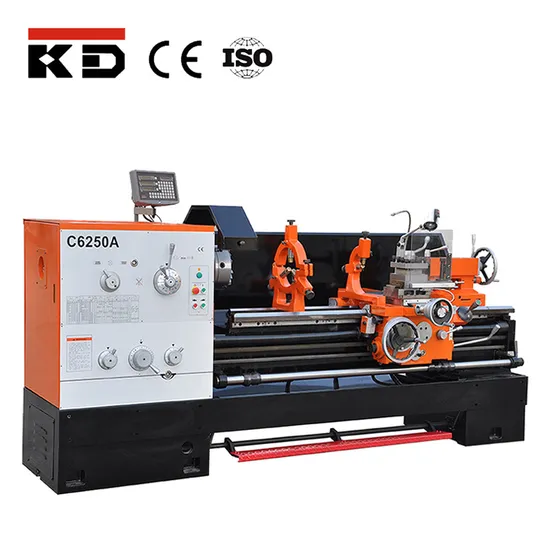

Metal Engine Lathe Machine for Sell C6250A
| US$9,658.00-12,820.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
C6250A
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Delivery
45 Days After Order Confirmed
Color
Made Tp Order
Handwheel
Right or Left Handwheel
Voltage
Optional
Spindle Bore
80mm
Swing Dia Over Bed
500mm
Bed Width
405mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458190000
Production Capacity
1200 Sets/ Year
Product Description
Milling Metal Engine Lathe Machine for Sell C6250AProduct Features
Product Specifications
| MODELS | C6250A |
| CAPACITY | |
| Max.swing over bed | Ф500mm |
| Max.swing over carriage | Ф310mm |
| Max. swing over gap | Ф720mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max turning length | 850/1350/1850/2850mm |
| SPINDLE | |
| Spindle nose | D8 |
| Spindle bore | Ф80mm |
| Taper bore of spindle | M.T.NO.7 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36~1600rpm |
| FEED | |
| Range of longitudinal feeds | 0.063~2.52 (0.023″~0.937″)mm |
| Range of cross feeds | 0.027~1.07(0.010″~0.404″)mm |
| RAPID TRAVEL | |
| Longitudinal | 4500mm/min |
| Cross | 1900mm/min |
| THREAD RANGE/ NUMBER | |
| Metric pitch threads | 1~14mm/ 22 |
| Whit-worth threads | 28~2 T.P.I/ 26 |
| Module threads | 0.5~7M.P/ 18 |
| D.P.Threads | 56~4 D.P/24 |
| TAILSTOCK SLEEVE | |
| Taper bore | M.T.NO.5 |
| Max travel | 150mm |
| External diameter | Ф75mm |
| OTHERS | |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 340mm |
| Max travel of top slide | 145mm |
| Main motor power | 7.5kw (10HP) |
| Overall dimensions(L×W×H) | (2500/3000/3500/4500)×1100×1380mm |
| Net weight | 2900/3150/3400/3750kg |
