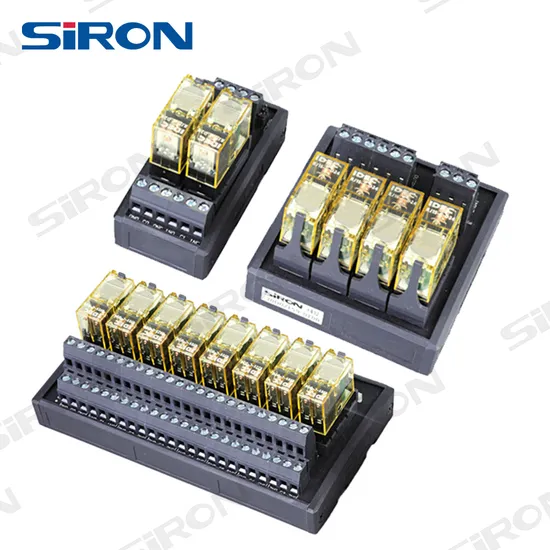

Siron Y433-O 2/4/8channel 2c Relay Input NPN/PNP DC24V Power Relay Module

Product Description

Features *Input/output side with surge absorbing circuit, which can effectively extend the life of the relay contact,
and can slow theinstantaneous impact current of load side.
*NPN/PNP bipolar input corresponding, and the indicator light will also follow the input signal of different and bright color
;Green - NPN ; Red - the PNP.
*Input side wrong line protection.
*Automation equipment, processing machinery, welding equipment and other kinds of industrial and agricultural machinery andequipment.
Specifications

Name	4channel 2C power relay module
Model	Y433-O
Contact Specification	Contact Constitutive	2C
	Contact Resistance (initial)	50m Ω ( By DC 6V 1A voltage descent method) Au-flashed AgNi type
	Contact Material
Rated	The rated control capacity (resistance load)	5A 250V AC,10A 30V DC
	Contact maximum allowable voltage	250V AC,30V DC
Electrical performance	Insulation resistance (initial)	More than 1000 M Ω (DC 500v insulation resistance meter, is used to measure the resistance and voltage the same position)
	On the coil temperature rise(at 70°C)	Under 60°C (resistance method, applying the rated operating voltage, in allowable electric contact)
	Actuation Time	Under 15 ms (Applying the rated working voltage, do not contain contact bounce)
	Resetting Time	Under 20 ms(Applying the rated working voltage, do not contain contact bounce, diode)
Life time	Mechanical Life	AC: more than 10 million DC: more than 20 million times (on-off frequency 300 times/min)
	Electrical life (under the rated control capacity)	More than 100,000 times (on-off frequency 20 times/min)
Service Conditions	The largest operating frequency		20 times/min (under the rated control capacity)
Input	Relay Coil Specifications
	Nominal coil voltage			DC 24V
	Nominal operating current			22.1mA
	Coil resistance			1080 Ω
	Pick-up Voltage			More 70%
	Drop-out Voltage			Following 10%
	Max. allowable voltage			170%
	Nominal operating power			0.53MW

Suitable wire	1.5mm2Following /AWG16
Range of Application	Automation equipment, processing machinery, welding equipment and other kinds of industrial and agricultural machinery and equipment.
