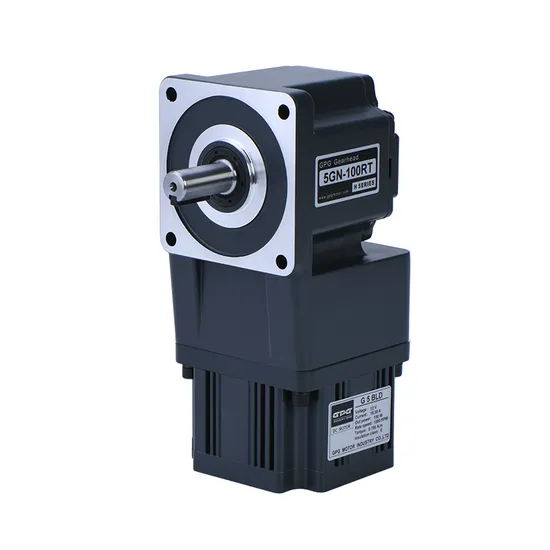

CE Approved 10W-1500W Brushless DC Motor BLDC Motor DC 12V 24V 48V 110V 220V 230V

Product Description

Model SelectionCE approved DC 12V 24V 48V 110V 220V 10W-1500W Brushless DC Motor BLDC Gear Motor with Brake Electric Motor Manufacturer
TaiBang Motor has a wide range of micro motor production lines in the industry, including induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motoretc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc and are the preferred and matched product for automatic machine.
Brushless DC motor is made up of motor and driver, which is a kind of typical product of mechanical and electrical integration.
It is highly regarded by market as its small volume, low noise, high efficiency, wide range of speed control and steady working state with less inaccuracy. The product is widely used in transmission equipment, textile machinery and medical devices, etc.
• Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need
We can modify standard products or customize them to meet your specific needs.
Motor Model Instruction
G6BLD300-48GN-18S

G	2	BLD	15	24	GN	18S
Factory Code	Frame Size	Motor Type	Output Power	Power Voltage	Motor Shaft Type	Motor Speed
GPG	Motor Mounting Flange: 60mm,70mm,80mm, 90mm,100mm,ø45,ø60	BLD:Brushless Motor With Square Gearhead BLDP:Brushless Motor With Planetary Gearhead	10:10W 15:15W 25:25W 40:40W 60:60W 90:90W 200:200W 400:400W	24:DC24V 36:DC36V 48:DC48V 110:DC110V 220:DC220V	GN:General Bevel Gear GU:Reinforced Bevel Gear A1:Milling Keyway A:Flat type	15S:1500RPM 18S:1800RPM 25S:2500RPM 30S:3000RPM

Gearhead Model Instruction6GN-100K

6	GN	100	K
Dimension	Gear Type	Reduction Ratio	Bearing type
2:60mm 3:70mm 4:80mm 5:90mm 6:104mm	GN:General Bevel Gear GU:Reinforced Bevel Gear GFS:L type hollow shaft gearbox	1:100	Ball Bearinig

Motor Type	Gearhead Type	Gear Ratio
G6BLD300-24GN G6BLD300-36GN G6BLD300-48GN	6GFS( )K	1:3~1:20
		1:25~1:180
