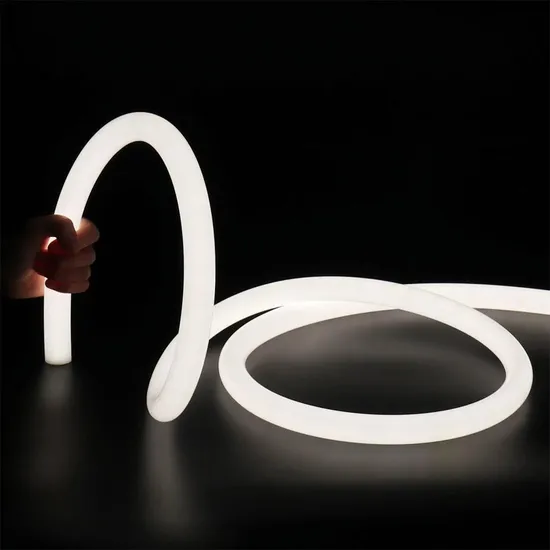

24V 240LEDs LED Neon Flex 360 Degree Diameter Round Shape IP67 LED Neon Tube Flexible Strip Light

Product Description

24V 240leds LED Neon Flex 360 Degree Diameter Round Shape IP67 LED Neon Tube Flexible Strip Light
Product Description Neon Silicone Flex Strip is widely used in indoor, outdoor decoration lighting, basic lighting, ambient lighting Neon Flex Strip is a good lighting source for signage and advertising because of its flexible and bendable characters Flexibility, safety, energy saving and easy installation and transportation over glass neon Easy to shape a variety of curves, letters, signs, patterns, patterns, etc., safer, easier and faster Different sizes for choice such as ATA D22, D25, D30, D40, D16 etc Various color available, white, warm white, cold white, red, blue, green, yellow, purple, pink, RGB, RGBW, CCT, DMX digital Perfect for decoration, party, ATA neon silicone led strip create different atmosphere Easy installation dedicated for room- and deco-light Skin-friendly surface treatment, comfortable touch, good flexibility, and simple shape Smooth surface, no cracks, no air bubble, no impurity, odorless and non-toxic High and low temperature resistant, odorless, corrosion resistant, anti-static, anti UV radiation Environmental friendly silicone material, available for extremely terrible outdoor environment Provide customized length with full range of accessories for direct project application Easy installation, can be cut and reconnected (DIY accessories available) Product Advantages Flexible cutting, translucent rubber, easy installation Uniform and soft luminance, no light spot Ultraviolet resistance milky silicone Durable, Anti UV Radiation, heat resistance Excellent flexibility to make different shapes at will Uniform and soft luminance, no light spot and shadow Product pattern, color, size can be customized Matched connector for easy install after cutting strip Overall height allows installation in narrow places Low power consumption and high brightness output Neon Silicone Flex Strip can be repeatedly folded in different shapes Shapes created by the end-users which reduce MOQ request on the same shape Using silicone material one piece molding, arbitrary bending, strong flexibility, super soft Top-quality LED Chip gold wire and copper pin, lead-free SMT technique, reliable driver and good heat dissipation, make sure higher stability and longer life-span Food-grade silicone, flame resistant material, high temperature resistance, low temperature resistance, cold resistance, durable, impact resistant, corrosion resistance, anti-UV, anti-acid, anti-alkali, anti-yellowing, anti-oxidation, waterproof, dustproof, available for extremely terrible outdoor environment Environmental friendly, no pollution, cold light source design, no heat radiation, no lead, mercury and other pollution elements Widely used replacing Glass neon, replacing aluminium profiles, LED wall washer Professional and reliable supplier--15 years experience Product Features Super bright, no dark area Uniform and bright, various colors Soft lighting and arbitrary bending Cuttable, bendable, shapeable Flexible, free bending, free DIY Mouldable, Bendable, waterproof Non-flicker, care of eyes Superiors, high tear strength High desnsity, high brightness, high color rendering index, high transmittance, high quality led no dark shadows, soft lighting Pure silicone material, fast heat dissipation High temperature resistance, silicone strip works well even in the temperature 50oC. Cold-resistant, it works normally at -20oC Waterproof and anti-fog, IP67 waterproof, It still work well even downpour Bendable, neon strip, with mininum bend radius 100mm, could light up every dark corner Flame resistance and environmental protection
Technical Specifications 1. Product Dimension (mm): D16, D20, D22, D25, D30, D40 2. LED Light Source: 3528, 2835, 3838, 5050, 5630, 5730, 335, 3014, 2216, Pixel LED, COB LED 3. Luminous Efficacy: 130Im/W 4. CRI: Ra>80, Ra>85, Ra>90, Ra>95, Ra>98 5. Viewing Angle: 360 degrees 6. Working voltage: DC5V, DC12V, DC24V, DC48V, AC110V, AC127V, AC220V, 230V, 240V 7. Power/Meter: 5W, 6W, 7W, 7.2W, 8W, 9W, 9.6W, 10W, 11W, 12W, 14W, 14.4W, 16W, 18W, 20W, 21.6W, 24W 8. LED Color: White, Warm white, Natural white, Red, Green, Blue, Ice Blue, Sky Blue,Yellow, Orange, Lemon Yellow, Golden Yellow, Rose Red, Purple, Lavender, Pink, RGB, RGBW, RGBWW, WB, WWB, Amber, CCT, DMX Digital, Dream Color 9. Silicone Color: Black, Red, Green, Fluorescent Green, Blue, Ice Blue, Yellow , Orange, Lemon Yellow, Golden Yellow, Rose Red, Pink, Cyan, Lavender, Translucent, Lemon 10. FPCB Width: 5mm, 6mm, 8mm, 10mm, 11.5mm, 12mm, 13mm, 13.5mm, 15mm, 16mm, 20mm 11. PCB color: White 12. LED Quantity per meter: 30leds, 32leds, 48leds, 54leds, 60leds, 72leds, 84leds, 96leds, 120leds, 126leds, 144leds, 168leds, 180leds, 240leds, 300leds 13. Cuttable Unit: 4.166cm, 5cm, 10cm, 20cm 14. Waterproof Rate: IP65, IP66, IP67, IP68 15. Waterproof Method: Silicone Pipe 16. Bending Type: 360° Flexible Bending 17. LEDs Life-span: 50, 000 hours 18. Working Temperature: -20oC-60oC 19. Storage Temperature: -40oC-80oC 20. Environment Humidity: 40-70% RH 21. Packing: 5m/roll, 1roll/bag 22. Certification: UL, cUL, DLC, TUV, VDE, GS, CB, SAA, FCC, CE, RoHS, LVD, EMC, Reach, CCC, FDA, PSE, CB, BIS, BSMI, KC, IEC/EN62471, TM21, LM79, LM80, IK06, ISO9001, ISO14001

Product Name	360° Round Neon Silicone LED Flexible Strip
Item Number	ATA-NS22D08240XX
Product Diameter (mm)	D16, D20, D22, D25, D30, D40
LED Light Source	2835 SMD LED
CRI(Ra)	CRI>80, CRI>85, CRI>90, CRI>95, CRI>98
Luminous Efficiency (LM/W)	130LM/W
Viewing Angle	360 degrees
Lighting Direction	360 degrees Lighting
Bending type	360 degrees Bending
Power	20W
Working Voltage	DC12V, DC24V, DC48V, DC5V, AC110V, AC127V, AC220V, AC230V, AC240V
Emitting Color	White, Warm white, Natural white, Red, Green, Blue, Ice Blue, Sky Blue,Yellow, Orange, Lemon Yellow, Golden Yellow, Rose Red, Purple, Lavender, Pink, RGB, RGBW, RGBWW, WB, WWB, Amber, CCT, DMX Digital, Dream Color
Silicone Color	Black, Red, Green, Fluorescent Green, Blue, Ice Blue, Yellow , Orange, Lemon Yellow, Golden Yellow, Rose Red, Pink, Cyan, Lavender, Translucent, Lemon
FPCB Width	8mm, 10mm
FPCB Color	White
LED Quantity per meter	240leds
Cuttable Unit	0.5M
IP Grade	IP65, IP66, IP67, IP68
Material	Silicone, FPCB
Waterproof Method	Silicone Pipe
Installation Method	End-cap, Clip, Track Connector, Wireropes, Rod, Suction Cup
Function	Dimmable, APP, Blue-tooth, Wifi, Mobile Phone, On/Off, DMX512, Triac, PWM, 1-10V
Working Temperature	-20~+60 celsius degree
LEDs Life-span	50, 000 hours
Packing	5m/reel, 1reel/bag
Certification	UL, cUL, DLC, TUV, VDE, GS, CB, SAA, FCC, CE, RoHS, LVD, EMC, Reach, CCC, FDA, PSE, CB, BIS, BSMI,KC, IEC/EN62471,TM21, LM79, LM80, IK06, ISO9001,ISO14001
Application	All Scenarios

Product Details High Luminous efficiency, up to 130LM/W SANAN/EPISTAR CHIP, gold wire and copper pin Silicone DC wire 360 degrees bending, feel free to make shapes Environmental friendly, sulfur-free Processing-Laser cutting, polishing, oil spray, painting&assembly Housing-adopt high-quality silicone, resistant to yellowing and has strong UV resistance Light transmission material- milky white diffusion transparent silicone Sealed structure-IP65 outdoor design LED Light Source-Sanan, Epistar Emitting effect-lighting is uniform, color consistency is good, light source color tolerance is ≤ 3 Emitting design-side lighting, side bend lighting Convenient installation-offering various outlet wire designs, cut at will, cuttable unit 5cm Accessories-End-cap, Clip, Track Connector, Wireropes, Rod, Suction Cup Working modes-Dimmable, APP, Blue-tooth, Wifi, Mobile Phone, On/Off, DMX512, Triac, PWM, 1-10V Bracket- aluminum bracket, embedded buckle Ambient temperature- -20°C to 45°C Product Dimension D16mm, D20mm, D22mm, D25mm, D30mm, D40mm
Installation Install LED Neon Silicone Strips Connect to LED Power Adapter
Applications for All Scenarios Widely used widely used in indoor and outdoor decoration lighting, in wall profile, basic lighting, ambient lighting, festive atmosphere, entertainment venues, Idea for in advertisement and cabaret, large scale backlight, cabinet, furniture, office building, ceiling decoration, landscape outlines and architectural lighting Edge-lighting of transparent or diffused materials, to couple light into transparent or diffused glass Bridge edge lighting, window display lighting, car and motorcycle decorative lighting, bar counter backlighting Decorative lights for holiday, event, show, exhibition Path & contour marking, building contour decorative lighting, cove lighting Emergency hallway lighting, rescue signs, advertising signs, light boxes Architectural decorative lighting, villa, restaurant, hotel, meeting room, show room, shop, counter, etc Festival lighting, festival decoration like Christmas, general lighting, marine light, task lighting, household appliances, architectural decorative lighting, decorative, pathway lighting, street lighting, emergency hallway lighting National green lighting projects, engineering lighting, commercial advertising lighting, building facade, public corridor, edge lighting decoration Building outlines, city night, city skyline lighting, city beautification, landscape design, Landscape outlines, holiday decoration, scenes illuminating, holiday decoration, garden designs, laminate lighting, large scale backlight, Building contour decorative lighting Perfect for different styles of indoor and outdoor space decorative lighting and outline, entertainment lighting, architecture lighting, main lighting, indirect lighting, online red punch in places, and some other indoor and outdoor places roof corners, edges where need light decoration. Used for silicon cable, silicone tube, silicone strip, medical tuble, flexible cable, electrical cable, HDMI cable, optical fiber cable and rubber cable etc. Replacement of aluminium profiles, fluorescent light Specific places such as: 1. Bars, clubs, disco, KTV, hotels, restaurant, school, library, gym, gymnasiums, stadium, fitness room, showroom, bicycle, cap, bag 2. Houses, house ornament, DIY Lights for home use, ceiling, bedroom, dining room, kitchen, desk, stages, ceiling, parlor, stair corridor, lawns, yard, balcony, garden, patio 3. Park, parking lot, sculpture, square, parking lot, playground, shopping mall, super market, store, plazas, catering, wedding festivals, parties 4. Office, shop, supermarket, commercial buildings facade, factories, bridge, isles, walkway, passageway, gallery, lobby, hallway, canopy, window, archway 5. Museums, artistic lighting, art galleries, exhibition hall, historical buildings, mosques 6. Neon advertising letter, chaneel letter, building and celebration decoration, advertising board, LED sign 7. Advertising boards, billboard, signage, backlight for signage, letters, outdoor illuminated signs, furniture, bookcase, cupboard, wardrobe, wine cabinet, gradevin, showcase, counter, corner 8. Magnetic track light, car interior decoration, spotlighting, wall-washing, diffusion and so forth 9. Interior outline, polygonal wall of hotel/ktv, advertising words, shelf, dark groove, modeling contrast 10. Underwater lighting engineering, decoration of fish tank, aquarium, fountain 11. Car decoration, motorcar chassis, inside and outside of car, high brake decoration 12. Display design, mirror decoration, decoration of drinks cabinet, shoe cabinet, jewelry counter, Bottle Moulding Machine Package Anti-static bag and K=K carton+ Wooden Box/Pallet 1roll/bag User Manual Switch off power of the mains supply or respectively of the connection lead before doing any works The complete installation must be done by an electrical expert who is familiar with the valid directives Quality Control Stability TEST: make sure 100% of LED Strip Light be aging test 48hours, waterproof testing 72hours Lighting TEST: make sure 100% of LED Strip Light be lighted before packing Drop TEST: make sure every single light have been well protected by box Lead Time 2-3 days for the sample order, 7-15 days for normal order Certificates UL, cUL, DLC, TUV, VDE, GS, CB, SAA, FCC, CE, RoHS, LVD, EMC, Reach, CCC, FDA, PSE, CB, BIS, BSMI,KC, IEC/EN62471,TM21, LM79, LM80, IK06, ISO9001,ISO14001 Factory
