PVC Cable Granule Extruder Machine
| US$25,000.00-35,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HL-75/180
Raw Material
PVC
Screw
Double-Screw
Inverter
Inverter
Electromagnetic Heater
Electric Heating
Automation
Automatic
Computerized
Computerized
Customized
Customized
Certification
CE, ISO9001:2008
Condition
Used
Usage
PVC Cable Granule Making
Machine Model
75/180
Capacity
400 Kg/H
Main Motor
90 Kw
Speed Control
Inverter
Heating
Electric Heating
Cooling
Water Cooling
Main Screw Diameter
71.4 mm
Main Screw Ratio
36:1
Quality Guarantee
12 Month
Delivery Time
30 Days
Transport Package
Wooden Pallet
Specification
75/180
Trademark
HIGH LAND
Origin
China
HS Code
8477201000
Production Capacity
10 Sets/Month
Product Description
PVC Cable Granule Extruder Machine 1. Application: This extruder machine is used making PVC cable granules. 2. Main Machine List| HL-75/180 PVC Cable Granules Production Line | ||
| S/N | ITEM | QUANTITY |
| 1 | HL-SRL-200/500 Hot-cold Mixing Machine | 1 set |
| 2 | Screw Loader | 1 set |
| 3 | Feeding Machine | 1 set |
| 4 | HL-75/36 Parallel Twin Screw Extruder Machine | 1 set |
| 5 | HL-180/15 Single Screw Extruder Machine | 1 set |
| 6 | Die face cutting machine | 1 set |
| 7 | Firstly class wind conveying machine | 1 set |
| 8 | Second class wind conveying machine | 1 set |
| 9 | Vibrating Machine | 1 set |
| 10 | Third class wind conveying machine | 1 set |
| 11 | Silo | 1 set |
| 12 | Control cabinet | 1 set |
3. Main Technical parameter
| PVC Cable Granules Production Line | |||
| S/N | ITEM | SPECIFICATION | |
| 200 L hot mixer | 500 L cold mixer | ||
| 1 | Total volume | 200 L | 500 L |
| 2 | Effective volume | 130 L | 320 L |
| 3 | Mixing motor power | 30/42 kw | 11 kw |
| 4 | Heating method | Electric heating | / |
| 5 | Cooling method | / | Water cooling |
| 6 | Mixing speed | 470/950 rpm | 130 rpm |
| 7 | Mixing blade NO. | 3 pcs | 1 pcs |
| 8 | Mixing time | 6-10 min/cycle | 10-15 min/cycle |
| 9 | Mixing capacity | 65 kg/cycle | |
| 10 | Unloading method | Pneumatic, ≥0.6 Mpa | |
| 11 | Water consumption | 10 m³/h | |
| 14 | Mixer weight | 3500 kg | |
| 15 | Mixer size | 4500 × 2200 × 2500 mm | |
| 16 | twin screw diameter | Ø 71.4 mm | |
| 17 | Twin screw ratio | 36:1 | |
| 18 | Twin screw extruder motor | 90 kw A.C motor | |
| 19 | Single screw diameter | Ø 180 mm | |
| 20 | Single screw ratio | 12:1 | |
| 21 | Single screw extruder motor | 45 kw A.C motor | |
| 22 | Die face cutting | 2.2 kw A.C motor | |
| 23 | Wind cooling | 5.5 kw × 3 pcs | |
| 24 | Vibrating machine | 0.55 kw with two fans cooling | |
| 25 | silo | 1 m³ | |

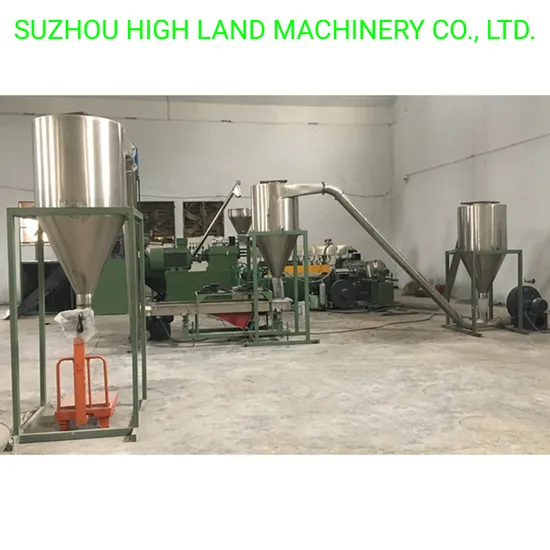

4. Main Machine Photos
5. Company Profile
We are a professional supplier of wire and cable equipment, so far we already exported our equipment to Australia, Pakistan, Morroco, India, Turkey, Iran, UK, Russia and so on.
We are willing to create a win-win future with friends of wordwide!
