Construction Portable Electric Stirrup Steel CNC Automatic Rebar Bending Machine

Product Description

Construction portable electric stirrup steel cnc automatic rebar bending machine Product Description CNC steel bar bending machine is a high-performance product designed for bending the main skeleton steel bars in concrete structures of high-rise buildings, highways, high-speed railways, large bridges and other projects. It can process high-strength threaded steel bars with a maximum diameter of φ32mm. It is characterized by a steel bar tightening mechanism in the middle and two machine heads that can move freely on a specific track to bend. It has the ability to perform bidirectional bending in one working unit at the same time.

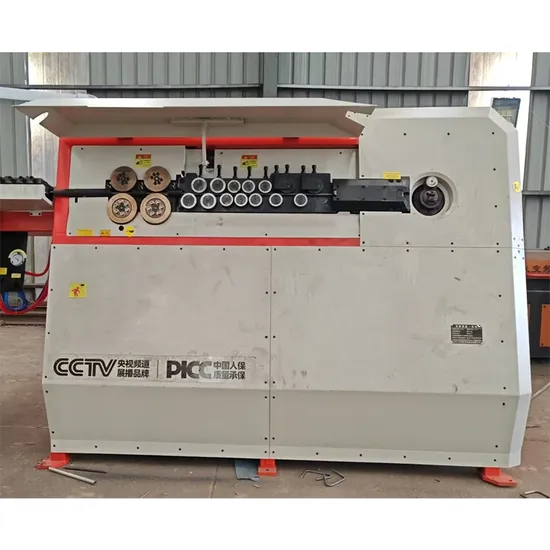

There are various stirrup components on construction sites with different sizes and shapes. The large-scale processing and forming of stirrups is completed by mechanical equipment. The fully automatic CNC steel bar straightening and bending machine is one of them, which can process stirrups of different shapes and specifications. Automatic stirrup bending machine CNC servo control system, can be done automatically reinforced straightening, cut to length,bending hoop, cutting and other process, the maximum diameter of 14mm can bend steel, continuous production of any planar shape of products. This product is widely used in railways, highways, bridges, airports, real estate, large steel bar processing plants and other fields. Detailed Photos The CNC steel bar bending machine is a bending machine. The CNC steel bar bending machine uses a stainless steel panel and will never rust.
Fully automatic CNC steel bar bending machine, CNC steel bar bending machine, steel bar bending machine
Features of the straightening system:
1.It consists of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by imported servo motors to ensure that the straightening of the steel bar reaches the best accuracy.
2.Bending and shearing mechanism: driven by imported servo motors, the bending arm can rotate and retract at high speed, and the shearing mechanism completes the shearing action at high speed to ensure the bending accuracy of the steel bar.
3.Control system: The machine adopts a mature foreign control system with high reliability. The control system has fault identification and alarm functions.
4.It can design ancient and modern and contour graphics of any shape within 60 bending angles, and can store more than thousands of different product shapes, and has a storage graphic library for multi-variety mass production.
5.It can continuously produce products of any shape without mechanical adjustment; there is no need to interrupt processing when correcting the bending angle.
Comparison of traditional processes:
The traditional processing technology of stirrups is generally achieved by using a single machine to distribute the coiled steel bar through modulation, cutting, bending and other processes. Its technology is relatively backward and cannot meet the needs of modern construction progress. It also wastes a lot of steel, occupies a large space, requires a lot of labor, has low productivity, and has poor hoop size and shape accuracy.
The CNC hoop bending machine uses advanced computer digital control to automatically and quickly complete steel bar straightening, sizing, hoop bending, and cutting. The machine is extremely efficient and can replace 20-30 steel bar workers, making it unique in the field of steel bar processing. Product Parameters

Model	RM4-12	RM-12B	RM4-13S
Single-line processing capability	4-12mm	4-12mm	4-14mm
Dual-line processing capability	4-8mm	4-10mm	4-10mm
Bending angle	180°	180°	180°
Center pin diameter	16/18/20	/	/
maximum traction speed	80/130/min	90/150/min	110/180/min
Maximum bending speed	1000/see	1000/see	1000/see
length accuracy	±1mm	±1mm	±1mm
Angular Accuracy	±1°	±1°	±1°
Average power consumption	3-5kw/h	3-5kw/h	5kw/h
Number of roots processed	≤2	2	2
air pressure	≥-10-12	/	/
machine power	18.2kw	25kw	35kw
Rebar processing shape	280 types	>280 types	>280 types
gross weight	1680kg	2200kg	2200kg
host size	320*95*175cm	530*110*190cm	540*110*190cm

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
is a concrete batching plant manufacturer with 15 years of professional production experience. We are one of the largest concrete batching plant manufacturers in China. The company has developed rapidly in recent years, and our new plant was completed and put into production in 2023, with a total area of 20,000 square meters.We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping
Certifications
Our Advantages
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a concrete mixing plant manufacturer with 15 years meanufacture experience
2.Can the machine be customized as our need, such as put on our logo?
Our faithful is Get The Right Equipment for the Job ,Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container. 5.What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company. 6. How can i get to your factory?
We can pick you up at the airport.
7. May i know which payment will be accepted by your company?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
9. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be
charged by you.
