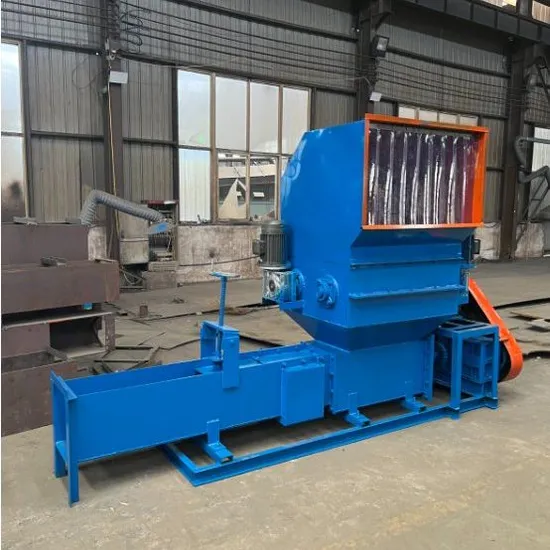

Automatic EPS Foam Compactor with Vertical Hopper and Pre-Crusher
| US$3,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
300
Material Processed
Foam
Plastic Type
EPS
Screw
Single-Screw
Automation
Automation
Computerized
Non-Computerized
Certification
QS, GMP, ISO9001:2008, CE
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Cutter Material
High-Speed Steel
Finished Surface
Outer Surface Process
Compressive Strength (for Crushing)
>300MPa
Tongs′ Features
Adjustable Tongs
Type
Knife Crusher
Object
Polystyrene
Principle
Na
Shafts Qty
2 PCS
Control Box
Yes
Pressing Plate
Adjustable
Reducer
Yes
Transport Package
Plywood Box
Specification
300/400
Trademark
Myaid
Origin
China
HS Code
8477800000
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
400.00cm * 180.00cm * 180.00cm
Package Gross Weight
300.000kg
Product Description
The EPS foam compactor is engineered to crush and compact loose foam materials into high-density EPS polystyrene briquettes, ensuring efficient recycling and reduced waste volume.* Featuring dual shredding shafts for robust performance.
* Equipped with a hard teeth reducer for enhanced durability.
* Integrated control box for user-friendly operation.
* Combines both shredding and compacting functions for streamlined processing.
* Optional conveyor available for improved material handling.
Machine Application
Machine Advantage
Installed a pre-crusher in the hopper which automatically breaks up larger pieces. Up to 50:1 compaction. 98% reduction in volume. Achieves a density in the range of 250 - 350 kg/m³, output is 70~150kg/h. Variable block sizes depending on machine. Saving handling & transport cost and store space.
Machine Parameter
| Model | 300 | 400 |
| EPS Briquette Size | 300*300mm | 400*400mm |
| Total Power | 21kw | 28kw |
| Crushing Motor Power | 3 kw*2 | 3 kw*2 |
| Capacity | 150 kg/h | 250kg/h |
| EPS Compressing Ratio | 50:1 | 50:1 |
| Hopper Size | 900*750 | 1000*750 |
| Machine Size | 3810*1048*2250 mm | 3900*1100*2200mm |
| Machine Weight | 1850kg | 2200kg |
| Power Supply at Default | 380V 3phase 50Hz | 380V 3phase 50Hz |
FAQ
Q: How does the machine compact loose foam materials? What components are involved in the compacting process?
A: The machine utilizes a screw to compress and convey shredded foam materials within the chamber, ensuring thorough compaction.
Q: Is the machine capable of compacting packaging foam boxes?
A: Absolutely, it can handle packaging foam boxes with ease.
Q: What benefits does this machine offer?
A: This machine effectively densifies large, loose foam materials into small, high-density briquettes, making them easier to transport while preserving the physical characteristics of EPS.
