Product Description

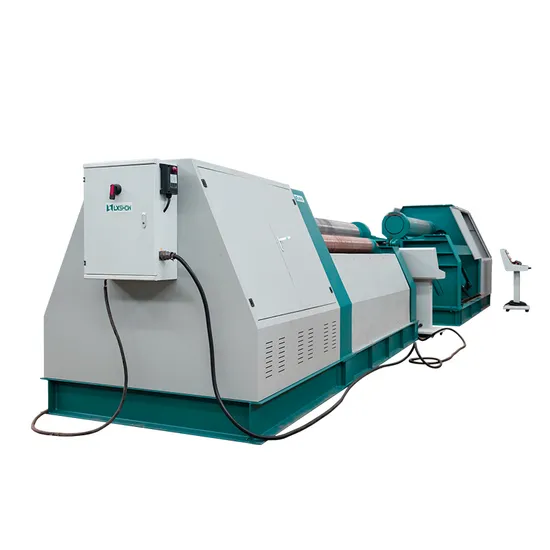

The plate rolling machine is a four-roll plate rolling machine, which is used to bend and roll metal plates of a certain thickness into tubular, curved or certain taper parts at normal temperature. Its working principle is rotary bending deformation. Because the side rollers on both sides can be tilted up and down, and the lower rollers can be lifted and lowered, there is no need to add additional equipment such as presses, and the pre-bending and forming bending functions of both ends of the plate can be completed without turning, and the correction of the formed workpiece can be used. With the help of the auxiliary device, the end of the plate can be aligned, and the remaining straight edge is less. It is an essential equipment for machinery and equipment manufacturing industries such as petroleum, chemical, cement, shipbuilding, boiler, aviation, water conservancy, and wind tower.
Product Parameters

Maximum coil thickness	T20*B2000*φ800(σs≤245MPa)
Maximum prebending plate thickness	T16*B2000*φ800(σs≤245MPa)
Maximum roll width	2000mm
The working length of the roller	2050mm
Remaining straight edge thickness	≤4 times plate thickness
Yield limit of coil sheet	245MPa
Winding speed	4.5m/min
Upper roll diameter	Φ320mm
Lower roll diameter	Φ300mm
Side roll diameter	Φ260mm
Roller	1 set
Roller movement mode	Hydraulic drive
Hydraulic system pressure	16Mpa
Roller drive mode	Hydraulic motor + planetary gear transmission
Maximum working pressure of hydraulic system	19.5Mpa
Main hydraulic motor power	15KW

Main Parts
Lifting Screw AssemblyScrewTurbo AssemblyReducerElectronic Control System (Siemens)Hydraulic System
Advantages
1.The four-roll plate rolling machine is controlled by the button, the unloading is convenient and fast, and it is also much safer than the three-roll plate rolling machine.
2.The four-roll plate rolling machine is pre-bent by lifting the side roller, and the speed is very fast, especially the advantages of the plate under 20 mm are more obvious
3.When the four-roll plate rolling machine is feeding, the system control and positioning are accurate by lifting the side roll as the ruler, which also makes it realize the numerical control and has the function of one-key round winding.
Application
