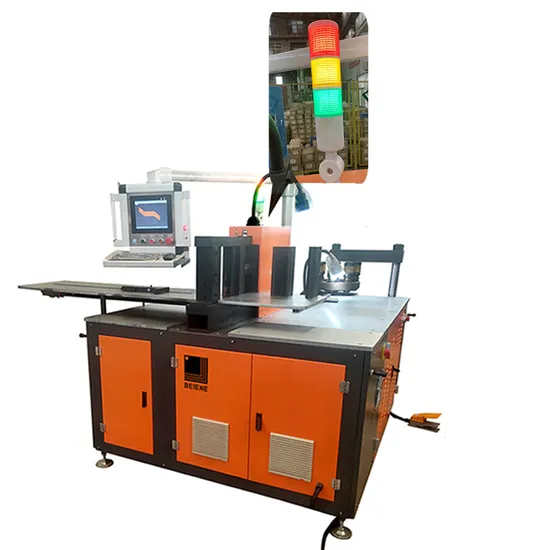

Busbar Processing Machine Multifunctional Machine of Bending, Punching, Cutting, Straighten

Busbar Processing Machine Multifunctional Machine of Bending, Punching, Cutting, Straighten

US$10,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SMART 603CNC
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Mould
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Motor Number
3
Working Units
3
Processing Material
Copper/Aluminum
Punch Thickness
15mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
weight: 1460KG
Trademark
BEIENE
Origin
China
Production Capacity
200 Set/Sets Per Month

Product Description

Product Description
CNC busbar bending machine is the computer-controlled equipment dedicated for busbar bending, performing various bending operations through the coordination of X-axis and Yaxis movements, assisted with manual feeding. The selection of different dies can complete the plane bending, side bending and other processes of busbar. The machine can be used in combination with GJ3D software, and is able to accurately calculate the spread length of the bend. As to the frequently bent workpiece, it can automatically find the bending order to achieve programming automation, simulate the bending order to place busbar and avoid errors in determining the bending positions
Product Parameters
Item Unit Parameter
Nominal Force KN 600
Bender Accuracy Degree ±0.2
Max Bending Stroke mm 250
Automatic Stroke mm 1000
Max Motion Speed of Side Striker
(X Axis)
m/min 15
Bending Head (Y Axis) m/min Fast: 5; Low: 1.25
Min Inner Width of U-shape Bend mm 40 (Note:Please consult us for smaller dimensions)
Max Bending Angle degree 90
Level Bending (W*H) mm 200 × 16 (Customerized 260x20mm)
Total Power kw 7.2
Main Machine Dimension: L*W MM 1500x1200x1200
TOTAL Weight kg 2000kg

Detailed Photos

Automatic Bending Gauge

Siemens PLC and SERVO Control

Windows All in One Touch Screen Computer
First 3D Busbar Design Software which can read CAD or
Solid work drawings and Do Bending from your Drawing Directly!

Wifi and ready for your Industry 4.0

Greatly Save and Benefit Customer

Installation Instructions
Whole-Installed Shipment

Packaging & Shipping

Certifications

Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.
