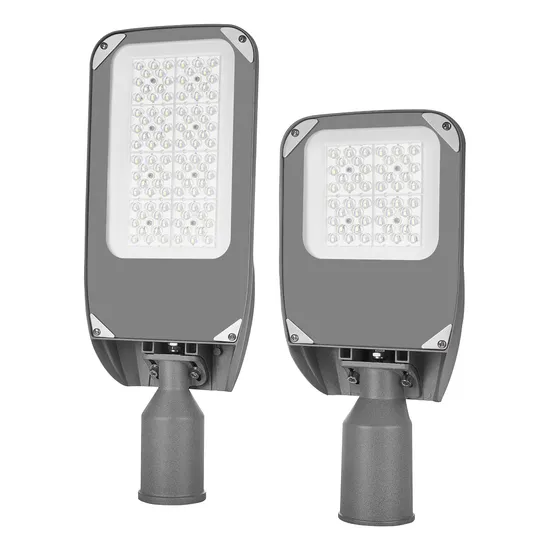

New Design IP 65 High Brightnees 50W 100W LED Street Light
Basic Info.
Model NO.
SR-50W
Lamp Body Material
Aluminum
Power
50-100W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP65
Input Voltage
160-260V
With Light Source
With Light Source
LED Chips Brand
Epistar
Lens
Typei/II/III/IV
LED Chip
2835
Arm Size
50/60mm
Photocell
Can Be Used
Lm/W
>160
Transport Package
Carton
Specification
400*190*76.3
Trademark
PTS
Origin
China
HS Code
9405499000
Production Capacity
30000PCS/Month
Product Description
Application This product is a price competitive LED street lamp developed by our company. The shell is made of aluminum alloy material, high strength tempered glass cover, high efficiency constant current power supply, waterproof level is IP65. It can be widely used in urban roads, parks and squares, as well as commercial and residential area.Detailed Photos
Product Size
| Model | LxWxH |
| SR-50W | 400*190*76.3mm |
| SR-100W | 501*190*76.3mm |
Product Parameters
| Element | SR-50W | SR-100W |
| Power(W) | 50W | 100W |
| Efficiency(Lm/w) | 160 | 160 |
| CRI | 70 | 70 |
| Input Voltage | AC 160-260V 50-60Hz | AC 160-260V 50-60Hz |
| Temperature Color(K) | 3000/4000/5000/6500 | 3000/4000/5000/6500 |
| Power Factor | 0.95 | 0.95 |
| Surge Protection(KV) | 6 | 6 |
| Lens | TypeI/II/III/IV | TypeI/II/III/IV |
| IP Rate | 65 | 65 |
| Working Temperature | '-40°~+50° | '-40°~+50° |
Product Features1. 2835 LED chip
2. PTS double isolated power supply with over voltage,over temperature, overload protection
3. Body is ADC12 cast Aluminum with good heat dissipation
4. High strength tempered glass cover
5. Lifespan over 50 000H
6. 5 years warranty
7. Professional optical design and excellent light distribution
8. Power reduction if working environment temperature over 45ºC
9. 50mm and 60mm diameter pipe arm can be choose
Installation Instructions
