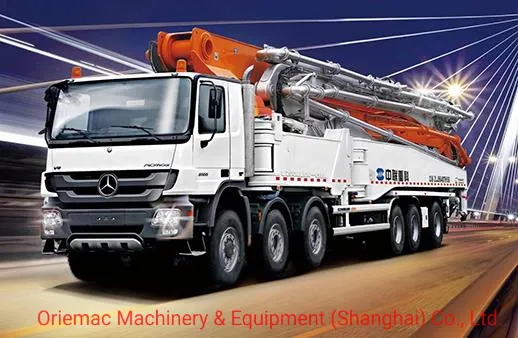

Zoomlion 36m Small Truck Mounted Concrete Pumps 36X-5z in Africa
| US$150,000.00-160,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
36X-5z
Machining Process
Vacuum
Structure
Cylinder Type
Productivity
120m²/h
Certification
ISO9001: 2000, CE
Condition
New
Color
Green
Concrete Hopper Capacity
550L
Maximum Vertical Reach
35.5
Maximum Horizontal Distance
35.5
Minimum Unfolding Height
8.5
Section Numbers
5
Transport Package
in Nude
Specification
10740*2500*3886 mm
Trademark
Zoomlion
Origin
China
HS Code
84294019
Production Capacity
1000 Set Per Month
Product Description
Zoomlion 36m Small Truck Mounted Concrete Pumps 36X-5z in Africa| Product Description |
• Compact in design, 36m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 8.52m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.
| Parameter |
| Pump Unit | Maximum pressure on concrete | m3/h | 120/80 |
| Maximum pressure on concrete | bar | 70/110 | |
| Conc. cylinders (diam. x stroke) | mm | 130×2100 | |
| Concrete hopper capacity | L | 550 | |
| Hydraulic circuit | Open | ||
| Boom Section | Maximum vertical reach | m | 35.5 |
| Maximum horizontal distance | m | 35.15 | |
| Minimum unfolding height | m | 8.5 | |
| Section numbers | 5 | ||
| Rotating angle | ±270° | ||
| End hose lenght | m | 3 |
