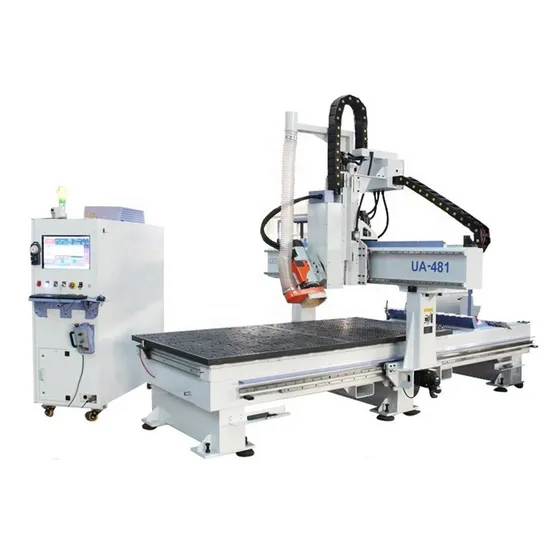

Automatic Tool Changer Wood Router 1325 CNC Router 4 Axis Atc CNC Aluminum Router 3D Carving Machine

Product Description

Automatic Tool Changer Wood Router 1325 Cnc Router 4 AXIS Atc Cnc Aluminum Router 3d Carving Machine
Product Description
QUICK 4 AXIS Cnc Router Machine is manufactured using global state-of-the-art techniques with advanced engineering, workmanship and built to last with all steel construction and superior components such as precision linear bearings and rails. Wood 4 AXIS Cnc Router Machine with high frequency automatic tool changer spindle with 8-position tool rack, pneumatically retractable vacuum hood and multi-zone vacuum table. The system includes Servo motors and controls with a Taiwan controller.

Our Advantages
1. Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam, Typ3, UG, Artcam).

2. Its advantage is that this machine is durable and has high processing precision. Using this machine will greatly improve work efficiency. The gantry is welded by a thick seamless steel structure; it is treated by high-temperature tempering and vibration stress relief (VSR) to reduce residual stress; ensure good stability and not easy to deform. The machine bed and frame are welded with 12mm thickness of steel tubes. heavy-duty machine bed. Heated with 650 degrees temperature treatment and will not be deformed for 20 years and ensure stale moving. Welded steel T type structure as a whole,six-legged heavy-duty body, large bearing capacity with vibration Temper aging treatment ensures no deformation for a long time, avoid the broken knife, more stable, durable.
Product Parameters

X-Y-Z axis working area		1300 x 2500 x 400mm
Repositioning resolution		0.02mm
X-Y movement		rack and pinion, gear drive
Z movement		ball screw drive/Taiwan
Guide		Linear 30 square/Taiwan
Max. speed		80,000mm/min
Max. cutting speed		50,000mm/min
Spindle power		9.6KW HSD air cooling -Italy
Auto tool changer		linear type with tool shank
Spindle speed		24,000rpm
Inverter power		11kw Inovance
Drive motors		YASKAWA servo motor 850W
Working voltage		AC380V/50-60Hz, 3-phase
Command code		G code
Computer interface		USB 2.0
Table		vacuum table
software free		Alphacam
controller		syntec 21A
pop up pins		x axis
		y axis

Detailed Photos

CNC controller, SYNTEC
Support drive and spindle error alarm function
Large storage space,fast reading speed and reliable processing.
Support intelligent file checking function.
Parameter backup and restore function to prevent the loss of important parameters.
High anti-jamming intensity passes many CE tests.
Spindle 9.6KW HSD -Italy
ER 32
Speed 24000rpm
air cooling spindle
Auto Oil lubrication system
a central oiler
Note:It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated.
equipped with detect system for short of oil, low pressure and high pressure. special oil duct design to make sure supplying lubricant from all oil injection spot.
Linear type auto tool changers
8pcs
Vacuum Table
double layer vacuum table
Good sealing, good suction
Japan Yaskawa servo motor 850W
YASKAWA, Japan servo motor,this is newest type, With high speed, high precision. Motor's max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high
After Sales Service

A. Communication:
1.We recommend the product that suits you in time, you only need to respond, we will give you a satisfactory answer.
2. 24hours online service, free technical support by whatsapp/wechat/call/emails.
B .Technical support:
1. Technical support by phone, email or whatsapp/Skype 24 HOURS
2. Friendly English version manual and operation video CD disk
3. Engineer available to service machinery overseas C. Quality assurance:
1. Machine Testing: To ensure the quality and stability of the machine, we use the most advanced production and testing equipment, to check the quality and performance of our industrial cnc equipment in each production step to ensure our equipment quality and stable performance.
2. Quality: In order to guarantee the performance and quality of our products, we strictly control all processes, assembly, our equipment quality, and delivery.
D. After sales services:
1. The machine has a one-year warranty, with spare parts provided within one year, and lifetime maintenance
2. Normal machine is properly adjusted before dispatch.You will be able to use the machines immediately.
You will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consulting, technical support and service by email/whatsapp/tel and lifetime technical support. Company Profile

Customer visit

Packaging & Shipping
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port.
