160kw 115-220t/H China Hpt200 Cone Crusher Stone Crushing Machinery Small Rock Crusher Price

Product Description

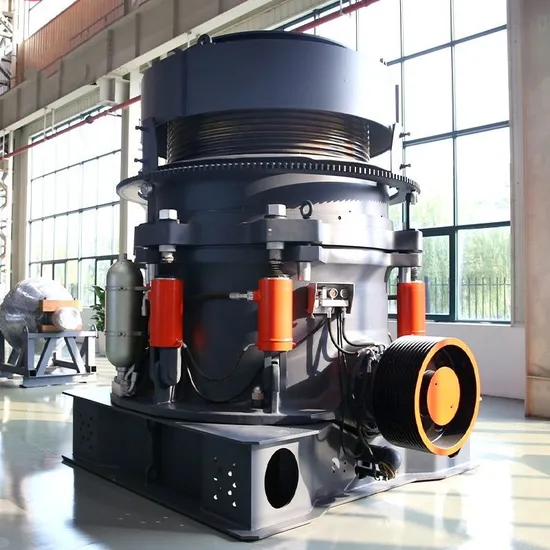

Product Description 160KW 115-220T/H China HPT200 Cone Crusher Stone Crushing Machinery Small Rock Crusher Price

HPT200 Manganese Ore Cone Crusher MachineClose Side feed opening(mm): 95Min CSS (mm): 13Capacity (t/h): 115-220Power (kW): 160HPT series high efficiency Hydraulic Cone Crusher is a world-level cone crusher developed from the up-to-minute technology of Germany. The cone crusher not only improves the production capacity and crushing efficiency, but also widen the applying area, from limestone to basalt, from stone production to various are crushing. It has a second-to-non crushing performance in the work of medium-size crushing, fine crushing and super fine crushing. The crusher is the improved type of spring cone crusher and can be used to replace ordinary hydraulic cone crusher in the line of mining and construction. It is the most ideal equipment for large stone crushing factory and mining industry.Applications: Aggregate field,concrete mixing plant,dry mortar plant desulfurization,quartz sand,etc.Learn More About HPT Series High-Efficiency Hydraulic Cone Crusher1. High crushing ratio and production efficiency.2. Less spare part consumption and low operation cost.3. Between-layer pressuring crushing and better finished product shape.4. Thin oil lubrication makes the life time increased.5. Hydraulic protection and hydraulic cavity clearing, high automatization and less stopping production and repairing time.6. Various crushing cavity.7. Easy maintenance and operation.8. The crusher can provide customers larger capacity, better product shape, and easy operation

Model	Cavity Type	Feed port size (mm)	Minimum discharge opening (mm)	Processing capacity (t/h)	Maximum installed power (kW)
HPT100	C1()	140	19	75-140	90
	C2()	100	13	60-110
	M()	70	9	52-100
	F1()	50	9	50-95
	F2()	20	6	45-90
HPT200	C2()	185	19	145-250	160
	M()	125	16	135-235
	F1()	95	13	115-220
	F2()	75	10	90-190
HPT300	C1()	230	25	220-440	250
	C2()	210	19	190-380
	M()	150	16	175-320
	F1()	105	13	145-280
	F2()	80	10	110-240
HPT400	C1()	295	30	300-630	315
	C2()	251	25	285-560
	M()	196	20	250-490
	F1()	110	13	180-345
	F2()	90	10	135-320
HPT500	C1()	330	38	425-790	400
	C2()	290	30	370-700
	M()	210	22	330-605
	F1()	135	16	270-535
	F2() e	95	13	220-430
HPT800	C1()	350	38	570-1200	630
	C2()	299	32	520-1050
	M()	265	25	475-950
	F1()	220	16	370-800
	F2()	150	13	310-600
