Ceiling Accessories T Grid for Ceiling 32/38*24*3600*0.26/0.3/0.35mm Can Be Customized

Product Description

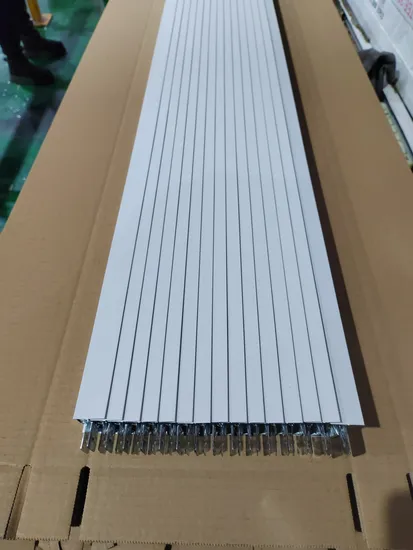

Ceiling Grid
Ceiling T-grid is rolled into moulds by galvanized steel coil and color-coated steel coil. It can be made into several specifications according to different kinds of ceiling. Owing to be beautiful, high-strength, anticorrosive and waterproof, Ceiling T-grid can suspend mineral fiber ceiling boards and pvc laminated gypsum boards in offices, shops and other places.
Its nature of fire-resistance is far more superior to the traditional interior decoration materials of wood and it is available for various kinds of ceiling panel in installation, like miner fiber board, gypsum board, PVC gypsum board and metal ceiling panel.
Raw Materials:
High-quality hot -dipped galvanized steel coil.
Product Characteristic:
Humidity Resistance Easy Installation Surface smoothness and easy cleaning Flexible suspension system makes each ceiling tile easily installed and disconnected Easy to match lamps or other ceiling parts Surface color can be stable for 10 years by indoor use
Classification:
Normal Plane System
Slim (narrow) Plane System
Groove System
Exposed System
FUT System
Installation Steps:
1. Determine the requirement ceiling level, mark the position and fix wall angle on the wall
2. Hang main tee with T-bar suspension hook
3. Insert cross tee to the main tee
4. Cross tee adjacent to wall angle light fittings
5. Adjust the levels and alignments throughout the entire grid system accurately
6. Install PVC gypsum ceiling tile or other materials ceiling panel
Advantage
ceiling T-grids/T-bar
1.Good and Stable quality
2.Durable and handsome
3.Moisture-resistant
4.Strong bearing capacity
5.Corrosion protection
Hot Dipped Galvanized Steel
Elegant
Rust proof
Fade proof
Acid & alkali resistant
Convenient for installation
Different dimensions can be made as required.
Specification

Normal Plane T-Grid / T-Bar System (NPT system )
Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm, 0.35mm,0.40mm	Cross Tee size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm
Narrow(Slim) Plane T-Grid / T-Bar System (SPT system )
Main Tee Size: (Height×width×Length) 38×15×3600/3660/3750mm 32×14.5×3600/3660/3750mm Thickness:0.26mm,0.30mm ,0.35mm,0.40mm	Cross Tee size: (Height×width×Length) 32×14.5×1200/1220/1250mm 32×14.5×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 24×15×3000mm 20×15×3000mm Thickness:0.3mm,0.4mm
Narrow (Slim) Groove T-Grid / T-Bar System ( SGBT system )
Main Tee Size: (Height×width×Length) 32×14.5×3600/3660/3750mm Thickness:0.26mm,0.3mm,	Cross Tee Size: (Height×width×Length) 32×14.5×1200/1220/1250mm 32×14.5×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 20×14×3000mm 20×14.5×3000mm 24×24×3000mm Thickness:0.3mm,0.4mm
Normal (Wide) Groove T-Grid / T-Bar System (NGB/ T system )
Main Tee Size: (Height×width×Length) 30×24×3600/3660/3750mm Thickness:0.26mm,0.3mm,	Cross Tee Size: (Height×width×Length) 30×24×1200/1220/1250mm 30×24×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 20×14×3000mm 20×14.5×3000mm 24×24×3000mm Thickness:0.3mm,0.4mm
Exposed Groove T-Grid / T-Bar System: (EGB/W T system)
Main Tee Size: (Height×width×Length) 42×15×3600/3660/3750mm 38×15×3600/3660/3750mm 32×15×3600/3660/3750mm Thickness:0.3mm,0.4mm,	Cross Tee Size: (Height×width×Length) 42×15×1200/1220/1250mm 42×15×600/610/625mm 38×15×1200/1220/1250mm 38×15×600/610/625mm 32×15×1200/1220/1250mm 32×15×600/610/625mm Thickness:0.3mm,0.4mm	Wall Angle Size: (Height×width×Length) 20×16×3000mm 20×16×3600mm Thickness:0.3mm,0.4mm
Plane T-Grid / T-Bar with Alloy-End (ANPT system )
Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm,0.35mm,0.40mm	Cross Tee size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm
Alloy-end T-Grid / T-Bar System
Main Tee Size: (Height×width×Length) 38×24×3600/3660/3750mm 32×24×3600/3660/3750mm Thickness:0.26mm,0.30mm,0.35mm,0.40mm	Cross Tee Size: (Height×width×Length) 26×24×1200/1220/1250mm 26×24×600/610/625mm Thickness:0.26mm,0.3mm	Wall Angle Size: (Height×width×Length) 24×24×3000mm 20×20×3000mm Thickness:0.3mm,0.4mm
