AC Servo CNC Machining Axis Die Sinking EDM Machine

Product Description

Product Features
* Excellent discharge circuit, high productivity, low wear, fine machining surface
* Precise linear guide-way and ball-screw of XYZ axis with laser pitch compensation to ensure machining accuracy
* Adopt Japanese AC Servo motor and motor direct transmission, no noise and backlash move smoothly and reliably.
* Graphite mirror finish machining circuit, automatic preventing carbon deposition.
Our Advantages
1.Innovative all-in-one design, occupying less space, the X/axis independent structure brings extremely high mechanical precision and the best operational experience.
2.Complete set of Japanese THK guide rails and screws, the spindle uses an imported linear encoder and an imported AC servo motor to achieve full closed-loop numerical control.
3.Automatic elevating oil tank, with a three-sided opening design to meet your imagination of space and convenience.
4.Temperature control of the processing liquid to meet the needs of high-precision product processing.
5.Rich rocking functions to perform high-precision multi-axis linked three-dimensional processing, greatly expanding the processing methods.

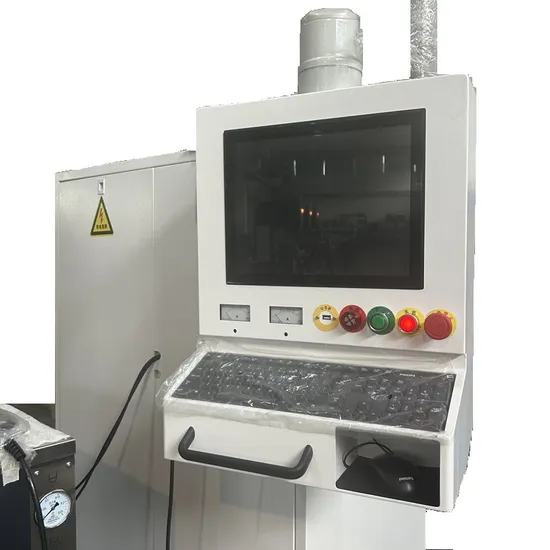

6.Windows human-computer interface, excellent intelligent expert system to help you quickly get started. Product Parameters

Table dimensions:	600*400mm
Worktable Travel:	X/Y 400*350mm
Work tank inner dimension:	990*640*450mm
Max.electrode weight:	25Kg
Max.workpiece weight:	400Kg
Dielectric tank capacity:	600L
Max.working current:	50A
Max.productivity speed:	400mm²/min
Display mode:	15' VGA
Power supply:	380V, 50Hz
Best roughness:	Ra<0.1um
Machine Unit Dimensions:	1500*2500*2500mm
Machine weight:	2600Kg
Controller Unit Dimensions:	1390*540*1830mm
Z axis resolution:	0.001mm
Power:	11KVA
Min. electrode wear ratio:	<0.1%

Checking Instrument Equipment
CNC Workshop

Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.

Company History
1966 :Suzhou No.3 Optical InstrumentFactory 1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model 1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller 1984 :DK7725D machine won the NationalSliver Medal 1989 : The company entered into partnershipwith COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venturecalled Suzhou Sanguang Electric MachineryCo.,Ltd 1994 : Sodick Co.Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-Sanguang Electric Machinery Co.,Ltd 1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoadSND China, plant area 38060m² 2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LAseries were released 2014 :Became a public company ,stockcode :430414 2016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
Certifications
