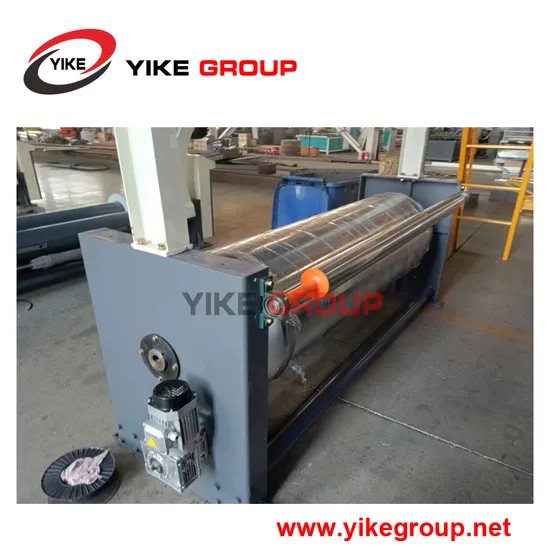

Top Core Paper Preheater, Diameter 900mm
| US$6,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YK-2200
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Recycled Material, Paper, Corrugated Cardboard
Paper Thickness
Cardboard
Item
Top Core Paper Preheater
Size
2200mm
Name
Carton Box Making Machine
Function
Corrugated Box Machine
Usage
Making Corrugated Cardboard
Speed
250m/Min
Machinery Test
Provided
Application
Food, Beverage, Commodity, Medical, Chemical
Voltage
380V/415V/440V
Use for
2/3/5 Layers Line Width 1800-2500mm
Transport Package
Standard Packaging
Specification
Standard
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
50sets/Month
Product Description
Top Core Paper Preheater, Diameter 900mmtechnical parameters:
1. Effective width:2200mm 2, diameter of preheat roller:¢900mm 3,angle adjustment range:360°rotation 4,angle shaft diameter:¢110mm×2
5,steam temperature:150-180ºC 6,steam pressure:0.8-1.3Mpa
7,equipment size:Lmx3.3*Wmx1.1*Hmx1.3 8,single weight:MAX2000Kg
9,working power:380V 50Hz 10,Motor power:250W short(S2)working system
| 1 | Effective width | 2200mm | 2 | Design produce speed | 150m/min | |||
| 3 | Three layer work speed | 100-120m/min | 4 | Five layer work speed | 80-100m/min | |||
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | 100m/min | |||
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm | |||
note | Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ºC heating surface temperature. | |||||||
| Top paper index | 100g/--180g/ Ring crush index(N.m/g)≥8 (Water containing8-10%) | |||||||
| Core paper index | 80g/--160g/ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) | |||||||
| In paper index | 90g/--160g/ Ring crush index(N.m/g)≥6 (Water containing8-10%) | |||||||
| 9 | Flute combination | |||||||
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr | ||||
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈220KW | Running Power≈150KW | ||||
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
| 13 | space | ≈Lmin70m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
