Packaging Machinery with Adjustable Tri-Dimensional Cellophane (SY-1999)

Product Description

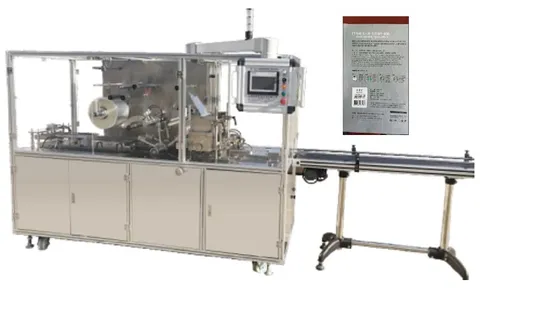

Sinyo Model 1999 adjustable cellophane overwrapping machine (with adhesive tear-tape)
Application:
cellophane overwrapping machine is used for overwrapping the square, rectangular product with a layer of cellophane(BOPP,OPP,PVC) the same as the packaging of cigarette.

Suitable for single and bundles packaging of various pharmaceuticals, condom, health-care products, confectionery, chewing gum, tea, coffees, perfumes, cosmetics,scratchpad,stationery, eraser,digital-media,VCD/DVD/CD cassette, tape, tobaccos, playing cards , napkin paper, pencil,ballpoint etc.Changing few parts could overwrap different dimension (length, width,height) of various products.

Application characteristics:
this machine is designed on the basis of absorbing,digesting and improving the advanced science and technology from Europe and Japan, using imported digital display transducer or PLC control and electrical components, with the advantage of stable and reliable operation,high speed,a firm packing, smooth and beautiful.

Advantages and features:
1.Adopting the foreign famous brand of digital display transducer,computer touch screen , PLC control and pneumatic components,the machine could be driven by cylinder and servo motor controlling of film feeding system.
2.the machine could do single case and bundled cases packing, with automatic feeding, folding, heat-sealing, packing,counting and stick tear tape. Packing speed could be adjusted freely.
3.with the advantages of compact structure,steady running,accurate synchronization, firm sealing,smooth and nice appearance,water-proof,dust-proof,Damp-proof.
4.With features of packing speed free adjustment, box feeding checking device malfunction self-diagnose device,convenient adjustment,easy to manipulate,heating temperature displaying,protection device for transmission parts.
5.Film feeding clutch,film length adjustment,smooth film feeding,accurate film length,no waste of packing film.
Remarks:
Our machines could be integrated in complete lines where they are connected to upstream and downstream machines. Sinyo can provide different types of collating, turning and tilting solutions for desired single or bundles packaging.
Our machine can also be customized with a variety of accessories like magic eye for handling printed film or tear tape for easy opening and various box feeding systems, cylinder pushing,date printer, static eliminator, ,cartonning machine,labelling machine,ink jet printer etc.

Machine model:	1999B	1999D
packaging speed	60-120 pcs/min	40-70
product size range: (mm) L(length) W(width) H(height)	(L)40-160(W) 20-100(H)10-45	(L)50-220(W)30-140(H)10-70
packaging material:	cellophane /OPP/BOPP/PVC/tear tape/ribbon
Suitable film thickness (µm)	20-50
machine dimension:(mm) L(length) W(width) H(height)	(L)2000(W) 790(H)1550	(L)2180(W)850(H)1550
conveyor dimension: (mm) L(length) W(width) H(height)	(L)1020(W) 550(H)900	(L)1020(W)220(H)900
machine weight: (kgs)	930	1000
power consumption: (KW)	4. 5
power supply :	220V/380V (50Hz/60Hz) single or three phases or customized
Options: OMRON,MITSUBISHI,SIEMENS,	Tear tape device, magic eye, various feeding systems, date printer, static eliminator or customized
