High Quality 4*6 Qr Code Packaging Label Printing Roll Paper Ship Sticker Label Printer Machine Impresoras Termicas
Basic Info.
Model NO.
OCBP-401DT
Automatic Two-sided Printing
Not Support Automatic Two-sided Printing
Supply Paper Mode
Automatic
Interface Type
Bluetooth
Network Function
Wireless Network
Style
Black and White
Consumable Type
Direct Thermal
Max. Paper Size
100mm
Character Structure
Full-width Characters Printers
Model
Ocbp-401dt
Interface
USB,USB+Bluetooth,USB+Bluetooth +WiFi, USB+LAN
Printer Head Life
50 Km
Printing Method
Direct Thermal
Resolution
203 Dpi
Print Speed
152mm/S Max
Print Width
20-108mm
Label Print Length
10-250 mm
Dimension
232mm*180mm*152mm(Lwh)
Weight
Net:1.36 Kg
Package Box
254*254*174mm/1.92kg
8 in 1 Carton
528*528*368mm/15.36kg
Transport Package
1PCS in a Box
Specification
254*254*174mm/1.92Kg
Trademark
OCOM/OEM/NEUTRAL
Origin
China, Guangdong
HS Code
8443321300
Production Capacity
3000PCS/Months
Packaging & Delivery
Package Size
26.00cm * 26.00cm * 19.00cm
Package Gross Weight
5.000kg
Product Description

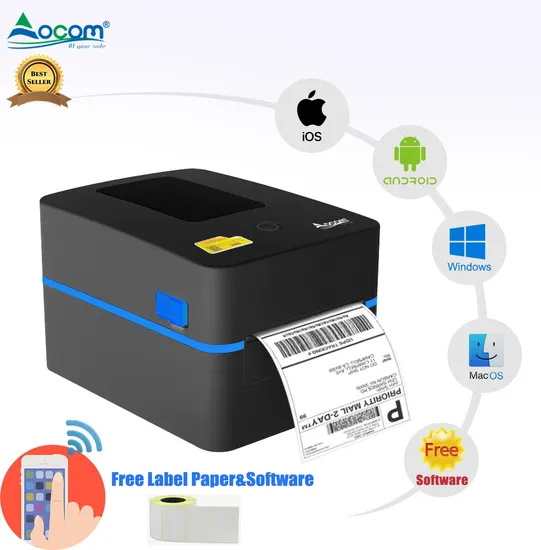

4-inchThermal Bar code Label Printer(M/N:OCBP-401DT)Features:
More economics:
Built-in dual sensors ensure no paper waste when loading paper.
Easy to operate:
DHCP function make the printer plug-and-play,No more complicated IP address settings.
More durable:
10W big motor and big gear, make the service life longer .
High-end materials:
Japanese ROHM Printer head, the printing life is up to 50km
Smarter editing software:
IOS+Android+Harmony OS +Windows+MAC,five-terminal interoperable free editing software
| General | |
| Model | OCBP-401DT |
| Material | Plastic housing |
| Interface | USB,USB+Bluetooth,USB+Bluetooth +WIFI, USB+LAN |
| Processor | 32-bit CPU |
| Memory | 4MB Flash Memory,320KB RAM |
| Printer Head life | 50 KM |
| Power supply | Input:AC 100V-240V,50-60Hz,Output:DC 24V/2.5A |
| Accessories | Power adapter,Power cable,USB cable,Label shaft,Manual |
| Sensors | Label edge detection, Out of paper detection,Gap detection,Black-mark detection,Cover-open detection |
| Gap height | 2mm Min |
| Black-mark height | 2mm Min |
| Font and bar code rotation | 0°,90°,180°,270° |
| Compatible command | TSPL |
| Printing capability | |
| Printing method | Direct Thermal |
| Resolution | 203 DPI |
| Print speed | 152mm/s Max |
| Print width | 20-108mm |
| Label print length | 10-250 mm |
| Barcode and character | |
| Bar-code | 1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code:PDF417, Maxi code, Data Matrix, QR code |
| Font | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software |
| Media | |
| Paper type | Folded paper or roll paper, die-cut label, black mark paper |
| Paper width | 20-118mm |
| Paper thickness | 0.06-0.22mm |
| Label roll capacity | 127 mm OD (outside wound) |
| Physical | |
| Dimension | 232mm*180mm*152mm(LWH) |
| Weight | Net:1.36 kg |
| Package box | 254*254*174mm/1.92Kg |
| 8 in 1 carton | 528*528*368mm/15.36kg |
| Environment | |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 50 degrees centigrade , 10%~90% No condensation |
