2024 new tech vmc machining center VMC1580L cnc vmc milling machine price

Product Description

Product Description

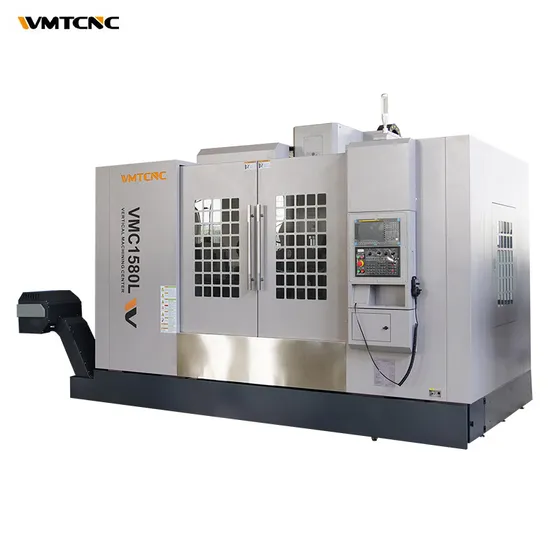

2024 new tech vmc machining center VMC1580L cnc vmc milling machine price main features:
1. The main basic parts such as the base, sliding seat, workbench, column, and headstock are made of high-rigidity cast iron structure. Reinforcing ribs are distributed inside the base. The sliding seat is a box structure to ensure the high rigidity and rigidity of the basic parts. Bending resistance and shock absorption performance, the column adopts "herringbone" structure, the foundation is stable, and the rigidity is good; the basic parts are molded with resin sand and undergo aging treatment to ensure the stability of the machine's long-term use accuracy and provide a guarantee for the stability of the machine's performance.
2. It adopts high-speed, high-precision, and high-rigidity spindle unit from a well-known Taiwanese brand, with strong axial and radial load-bearing capacity, and a speed of 6000rpm.
3. Adopting Taiwan's high-quality 24 disc tool magazines, with accurate tool change, short time and high efficiency. It has been tested by millions of times and meets the reliability requirements; with a damping structure, it can reduce the impact during movement and ensure the tool The service life of the library; pneumatic drive, tool change in the shortest path.

Specification	VMC1580L
Worktable
Worktable size (L×W)	1600×800mm
T-slots size (N×W×D)	5-22x135mm
Travel
X/Y/Z axis travel	1500/800/700mm
Machining range
Distance from spindle center to column	855mm
Distance from spindle nose to worktable surface	190-890mm
Spindle
Spindle taper	BT40/BT50
Spindle power	11/15kw
Max. spindle speed	8000/6000rpm
Feed
Max. feed speed	10m/min
Rapid feed speed (X/Y/Z)	24/24/20m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	5012
Tool magazine
Tool magazine capacity	24T
Max. length of tool	300mm
Tool change time	1.5s
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	0.01mm
Re-positioning accuracy(X/Y/Z)	±0.008mm
Machine dimension
L×W×H	3800×2720×3610mm
Machine weight
Max. loading of worktable	1500kg
Machine weight	13000kg
