Jzc Series Concrete Mix Plant Sand and Cement Mixer
| US$2,000.00-9,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JZC350 sand and cement mixer
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
35m²/h
Certification
ISO9001: 2000, CE
Condition
New
Color
All Colors
Motor Power
12kw
Mixing Power
5.5kw
Charging Capacity
560L
Reclaiming Capacity
350L
Speed of Mixing Drum
14r/Min
Water Supply Mode
Pumping
Working Cycle Period
60s
Discharge Way
Automatic
Power Source
380V, 50Hz, 3 Phase
Name
Concrete Mix Plant Sand and Cement Mixer
Transport Package
Standard Packing of Concrete Mixer
Specification
ISO9001: 2008, CE
Trademark
FOCUS
Origin
China
HS Code
847431000
Production Capacity
120 Sets Per Month
Product Description

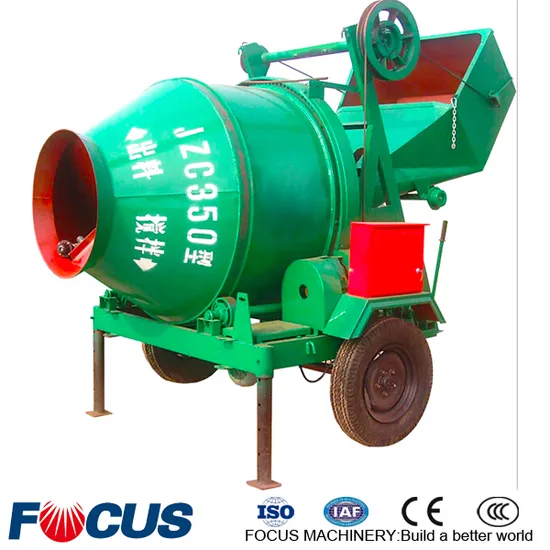

Jzc Series Concrete Mix Plant Sand and Cement MixerJZC350/500/750 Rotary Concrete Mixer with climb bucket:
Characteristics:
FOCUS JZC Series rotary concrete mixer is a kind of reversal discharging mobile concrete mixer, which can mix semi-rigid and plastic concrete.
The mixing drum is gear-driven and has characteristics of balance running, simple operation and high mixing quality. FOCUS JZC rotary concrete mixers can be composed as a medium-sized mixing station matched with feeding and weighing equipments, widely used in different kinds of construction projects, applicable in general construction sites, roads, bridges and hydropower projects, especially for urban residential construction.
Sizes:
JZC: Gear ring type reversal discharging
JZC350: Electric Motor with climb bucket(lift bucket)
JZC500: Electric Motor with climb bucket(lift bucket)
JZC350/JZC500: Diesel Motor with skip bucket(tipping bucket)
JZM: Rubber Friction type reversal discharging
| Model parameter | JZC350 | JZC500 | JZC750 |
| Discharge vol. | 350L | 500L | 1200L |
| Charging vol. | 560L | 800L | 750L |
| Output capacity | 10-14.5m³/h | 18-20 m³/h | 25-30 m³/h |
| Aggregate dia. | 60mm | 60mm | 70mm |
| Rotating speed | 14r/min | 13r/min | 13r/min |
| Max. drag speed | 20km/h | 20km/h | 20km/h |
| Mixing motor | 5.5kw | 7.5kw | 12kw |
| Lifting motor | 4.5kw | 5.5kw | 7.5kw |
| Pump motor | 0.55kw | 0.75kw | 0.75kw |
| Weight | 1950kg | 3100kg | 3300kg |
| Dimension LxWxH(mm) | 2766x2140x3000 | 5230x2300x5450 | 6200x2465x5450 |
