Highly Efficient Dispatching Winches with Electric Drive
Basic Info.
Model NO.
JD-1 Dispatching Winch
Type
Electric Winch
Driven Type
DC
Speed
Fast
Carrying Capacity
Weight Level
Tonnage
1T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, ISO 9001
Standard
National Standards
Wire Rope Static Tension Kn
10
Min. Rope Speed(M/S)
0.433
Max. Rope Speed(M/S)
1.033
Average Rope Speed(M/S)
0.733
Drum Size (mm) (Dia.*Width)(mm)
224*304
Wire Rope Dia.(mm)
12.5
Rope Length(M)
400
Total Reduction Ratio
41
Dimension (mm)
1120*766*727
Weight(with Motor)(Kg)
542
Transport Package
Wooden Case or Carton Case
Specification
JD-1 Dispatching Winch
Trademark
zhongmei
Origin
Shandong, China
Production Capacity
10 Sets Per Month
Product Description
Product Description
Introduction of Highly Efficient Dispatching Winches With Electric Drive A dispatch winch is a mechanical device used for lifting and handling items. It is driven by an electric motor, and through the gear and chain transmission force, the winch wire rope is wound on the winch drum to lift or lower items. Scheduling winches are usually used in industry, construction, warehousing and other fields, and can be used for a variety of operations such as lifting heavy objects, handling goods, and elevating and lowering people. Scheduling winches are widely used in various industries, such as lifting in building construction, handling goods in warehousing and logistics, and lifting and lowering materials in factory production lines. Its appearance greatly improves work efficiency, reduces labor costs, and enhances operational safety. zmwm17 Product Parameters
Parameter of Highly Efficient Dispatching Winches With Electric Drive
| Model specification | JD-1 | JD-1.6 | JD-2.5 | JD-4 | |
| Wire rope static tension KN | 10 | 16 | 25 | 40 | |
| Rope speed(m/s) | Min. | 0.433 | 0.733 | 1.16 | 0.95 |
| Max. | 1.033 | 1.399 | 1.45 | 1.48 | |
| Average | 0.733 | 1.066 | 1.31 | 1.22 | |
| Wire rope size | Wire rope Dia.(mm) | 12.5 | 15 | 18.5 | 21.5 |
| Rope length(m) | 400 | 400 | 500 | 850 | |
| Drum size (mm) (Dia.*Width)(mm) | Φ224*304 | Φ310*400 | Φ620*580 | Φ580*600 | |
| Total reduction ratio | 41 | 32.5 | 42.24 | 32.75 | |
| Dimension (mm) | 1120*766*727 | 1435*1217*1255 | 1830*1794*1390 | 2200*1965*1425 | |
| Weight(with motor)(kg) | 542 | 1370 | 2500 | 3750 | |
| Flameproof motor | Model | YBJ-11.4 | YBJ-25 | YBJ-40 | YBK3-280M-6 |
| Power(KW) | 11.4 | 25 | 40 | 55 | |
| Turn number(r/min) | 1460 | 1465 | 1470 | 980 | |
| Voltage(V) | 380/660 | 380/660 | 380/660 | 380/660 | |
Detailed Photos

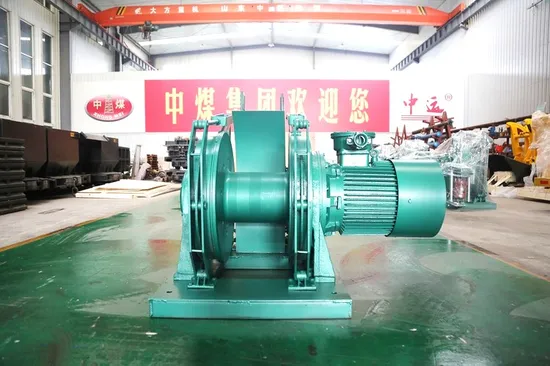

Pictures of Highly Efficient Dispatching Winches With Electric Drive
