Environmentally Friendly Concrete Batching/Mixing Plant with Low Emissions
| US$60,000.00-300,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
HZS50 HZS75 HZS100 HZS150 HZS200 HZS225
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Spiral Type
Productivity
120m²/h
Certification
ISO9001: 2000, CE
Condition
New
Color
Grey and Red
Power Type
Electric
Machine Type
Production Line
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Dimension(L*W*H)
43538*24000*18704mm
Weight
100000 Kg
Warranty of Core Components
1 Year
Theoretical Capacity (M3/H)
50-225
Mixer Power (Kw)
22*2 30*2 37*2 55*2 75*2
Video Outgoing-Inspection
Provided
Marketing Type
Ordinary Product
Total Power (Kw)
110-265
Model
Hzs50 Hzs75 Hzs100 Hzs150 Hzs200 Hzs225
Power
22-75
Machinery Test Report
Provided
Discharge Volume (L)
1000-4500
Specification
43538*24000*18704mm
Trademark
NFLG
Origin
Fujian, China
Product Description

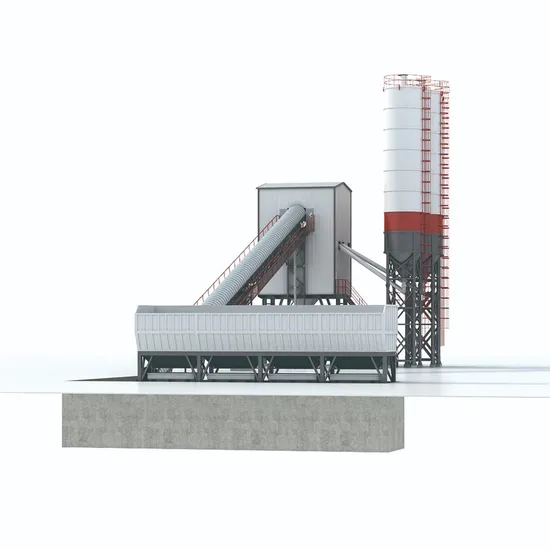

HZSEngineering Concrete Mixing Plant (High-speed Rail Station)
Modular design,easy installation and relocation;
The equipment occupies a small area and has strong site adaptability;
Aggregate is measured separately, with high weighing accuracy. Product Description
Product Parameters
| Model | HZS50 | HZS75 | HZS100 | HZS150 | HZS200 | HZS225 |
| Theoretical capacity (m3/h) | 50 | 75 | 100 | 150 | 200 | 225 |
| Mixer power (kW) | 22*2 | 30*2 | 37*2 | 55*2 | 75*2 | 75*2 |
| Discharge volume (L) | 1000 | 1500 | 2000 | 3000 | 4000 | 4500 |
| Total power (kW) without screw conveyor and silo | 110 | 140 | 160 | 215 | 255 | 265 |
| Note: 1. Not include the power of the screw conveyor and dust removal for silo. 2. The volume of the silo can bedesigned according to the requirements. 3. The parameters may change, and the product shall prevail. | ||||||
Detailed Photos
Company Profile
After Sales Service
FAQ
1 : Are you original manufacture?
A:Yes. we are NFLG, an official leading manufacture in construction machinery in China and we have the whole series products you need.
2:What kind of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Do you provide equipment operation training?
A:Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
4:What about the delivery time?
A:45 days after receving the deposit
5:What about the warranty time?
A:12 months after shipment
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
