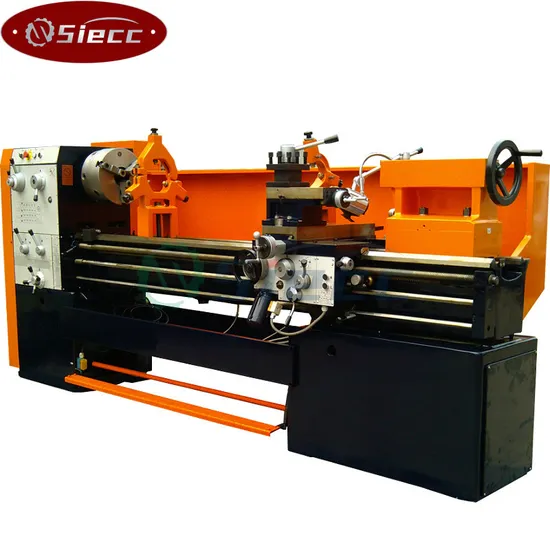

Chc Series Lathe Machine
| US$6,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CHC SERIES LATHE MACHINE
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Steel Pallet Packaged
Specification
CE/ISO/SGS/GOST CERTIFICATION
Trademark
SIECC
Origin
Haian City, Nantong, Jiangsu
HS Code
8458190000
Production Capacity
200 Set /Month
Product Description
"PRODUCT FEATURES*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED.
*GEARS PRECISELY GROUND TO REDUCE NOISE.
*SPINDLE BORE 65MM/80MM/103MM CAN BE CHOSE.
*NO NEED FOR CHANGE GEAR.THE MACHINE CAN TRUN 66 KINDS OF METRIC, INCH, MODULE AND D.P. THREADS.
*YOU CAN CHOSE:CLUTCH IN HEADSTOCK MAKES THE LATHE MORE SAFE AND RELIABLE.
DIFFERENCE BETWEEN CHB/CHC/CHD SERIES AS FOLLOW:"
| Model | DETAILS | ||||
| CHB HEADSTOCK | Spindle hole | 65mm | |||
| Spindle nose | ISO-D6 | ||||
| Spindle taper | Metric 70mm | ||||
| Spindle speed(Number) | (15steps)22-1800rpm | ||||
| CHC HEADSTOCK | Spindle hole | 80mm | |||
| Spindle nose | ISO-D8 | ||||
| Spindle taper | Metric 85mm | ||||
| Spindle speed(Number) | (15steps)24-1600rpm | ||||
| CHD HEADSTOCK | Spindle hole | 103mm | |||
| Spindle nose | ISO-D11 | ||||
| Spindle taper | Metric 115mm | ||||
| Spindle speed(Number) | (15steps)20-1200rpm | ||||
| Model | CH6240B | CH6250B | CH6260B | CH6266B | |
| CH6240C | CH6250C | CH6260C | CH6266C | ||
| CH6250D | CH6260D | CH6266D | |||
| CAPACITY | Max.swing over bed | 400mm | 500mm | 600mm | 660mm |
| Max.swing over cross slide | 240mm | 325mm | 360mm | 420mm | |
| Max.swing over gap | 540mm | 630mm | 730mm | 790mm | |
| Effective length of gap | 260mm | ||||
| Center Distance | 1000\1500\2000\3000mm | ||||
| Bed Width | 330mm | ||||
| FEEDS | Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | |||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||||
| Metric threads range | 66kinds 0.5-28mm | ||||
| Inch threads range | 66kinds 1-56inch | ||||
| Moudle threads range | 33kinds 0.5-3.5mπ | ||||
| Diametral threads range | 33kinds 8-56D.P | ||||
| CARRIAGE | Max.travel of top slide | 130mm | |||
| Max.travel of cross slide | 300mm | ||||
| Max.size of toolshank | 25*25m2 | ||||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | |||
| Taper of tailstock sleeve | MT5 | ||||
| Max.travel of tailstock | 120mm | ||||
| MOTOR | Main drive motor | 5.5KW | 7.5KW | ||
| Rapid traverse motor | 250W | ||||
| Coolant pump motor | 125W | ||||
| PACKING L*W*H | Center Distance(1000mm) | 245*115*175cm | |||
| Center Distance(1500mm) | 295*115*175cm | ||||
| Center Distance(2000mm) | 345*115*175cm | ||||
| Center Distance(3000mm) | 445*115*175cm | ||||
| N.W/G.W | Center Distance(1000mm) | 1600/2000kg | 1650/2050kg | 1750/2150kg | 1850/2250kg |
| Center Distance(1500mm) | 1800/2200kg | 1850/2250kg | 1950/2350kg | 2050/2450kg | |
| Center Distance(2000mm) | 1950/2350kg | 2000/2400kg | 2100/2500kg | 2200/2600kg | |
| Center Distance(3000mm) | 2100/2500kg | 2150/2550kg | 2250/2650kg | 2350/2750kg | |
