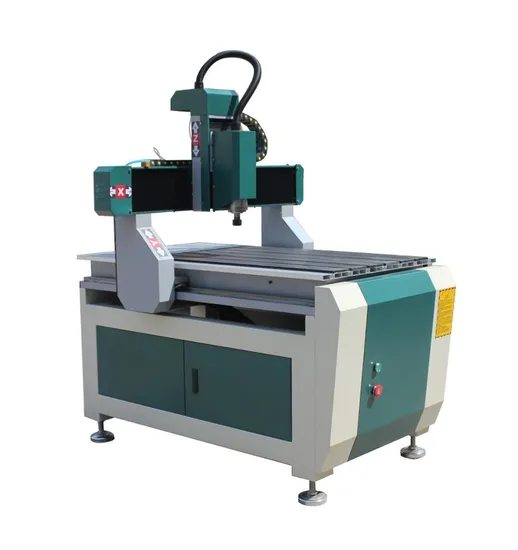

Small Size CNC Router 6090 Engraver and Cutter Machine
Basic Info.
Model NO.
ZK
Spindle Number
Single-Spindle
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
Control System
Ncstudio Control System
Spindle Power
1.5kw Water Cooling Spindle
Inverter
Best Inverter
Table
Casting Iron Frame
Transmission
Ball Screw
Motor
Stepper Motor
Guide Rail
Round Rail
Application
Wooden Industry
Spindle Speed
6000-24000
Bed Structure
Welded Bed Structure
Transport Package
Plywood Package
Specification
600*900*100mm
Trademark
ZK
Origin
Jinan Shandong
HS Code
8465990000
Production Capacity
100
Product Description
Small size cnc router 6090 engraver and cutter machineConfiguration:
Feature:
1.Adopt high power 1.5KW water cooling spindle,which is suitable for longtime and high temperature working
2.The lathe is founded by high-quality casting iron that ensures the high stability
3.What ball screws ZK use are the Taiwan TBI ball screws with high precision and fast speed
4.Round rail with high accuracy and high efficiency
5.Large compatibility of software such as Type3,artcam and others
6.Our standard controller is Ncstudio,easy to operate(optional:DSP control system)
7.Aluminum T-slot surface with high strength raises stability and longtime working.
Specification:
| Model | ZK 6090 |
| XY transmission | ball screw transmission, round guide rails(also can optional square guide rails) |
| Table size (cm) | 60*90 |
| Z transmission | ball screw transmission |
| Spindle power | 1.5KW |
| Spindle speed (min/max) | 6000 - 24000rpm |
| Power consumption without spindle | More than 1000W |
| Speed max. | 0-100mm/s |
| Working speed max. | 100mm/s |
| Stepper or servo motor? | Stepper motor |
| XYZ accuracy | 0,04mm |
| Reposition accuracy | 0,01mm |
| XYZ resolution | 0,025mm |
| Table surface | Cast iron table which with water cooling system |
| Included Software | Type3 or Wentai software |
| Software Compatible with | Win98/Win2000/XP |
| Spindle cooling system | water cooling spindle |
| Tools | 10pcs for engraving and cutting |
| Control system | Ncstudio control system or DSP control system |
| Software transmission language | G-Code, HPGL |
| Interface | USB |
| Voltage | 220VAC/50-60Hz |
| Running environment | 0-35°C, humidity: 10-70% |
| Production time | 5 days |
Certification:
Service:
1.Guarantee for one year
2.24-hour technical support by email or call
3.User-friendly English manual for machine using and maintaining
4.Free technician training for large customers.
