Single/Double Oven Plastic PVC/UPVC/PP Pipe/Tube Belling/Socketing/Socket Making Machine Price /Pipe Belling Machine
Basic Info.
Model NO.
SGK 63-630
Screw No.
No Screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Customized
Customized
Condition
New
After-sales Service
1year
Socket Machine
Belling Machine
Belling Machine
Pipe Belling Machine
Operation
Full Automatic
Socketing Type
Rectangle Mould
Belling Mould
Straight Type Mould
Belling End
R Type
Control Type
Siemens PLC Control
Material
UPVC &PP Pipe
Machine Length
6 Meter
Heating Oven
Double Station
Transport Package
Wood
Specification
sgs
Trademark
middle tech
Origin
Zhangjiagang City
HS Code
84772090
Production Capacity
20 Second/M
Packaging & Delivery
Package Size
600.00cm * 200.00cm * 200.00cm
Package Gross Weight
4000.000kg
Product Description
Product Description

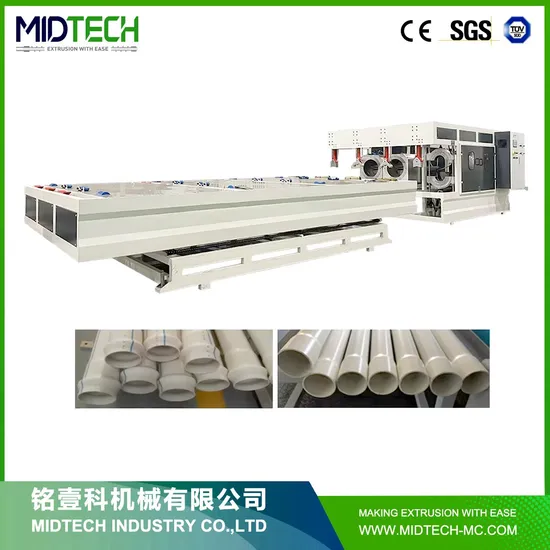

Single/Double Oven Plastic PVC/UPVC/PP Pipe/Tube Belling Machine/Socketing/Socket Making Machine
| Main technical parameters | |
| pipe expand range out diameter | Φ 200-500mm |
| Belling type | U type, R type |
| Oil label | No. 46/hydraulic oil |
| Quantity of heater | 2 |
| Heating power | 24kw |
| highest temperature in heater | 300 Centigrade |
| Air pressure | 0.4~0.6Mpa |
| Method of belling R type | External pressure system |
| Max speed of production | 6 sockets/h |
| Working method | On line/single machine |
| Cooling water pressure | 0.2~0.3Mpa |
| Total power/Capacity | 54kw |
| Pipe length | 3-6m |
| Center height | 1100mm± 50mm |
| Machine set weight | 3.6T |
| Dimension of machine | 8290x2750x2080mm |
It is specially used for belling of PVC pipes with OD 16-630mm.
The pipe belling type: Straight type and R type. The shaping method is External pressure system. After shaping the force water cooling of pipe are adopted to ensure precise belling size.
The machine can be used on complete extrusion line with PLC control.
The feature and application of SGK series full automatic belling machine:
1) It is suitable for plastic pipes with R type and U type.
2) Control:Japan Mitsubishi PLC.
3) Double, single or four ovens.
4) PVC pipe range: 16-630mm.
5) It can not only used in line with the pipe production line but also can be used alone.
6) The characteristics of this machine is full automatic, stable and reliable, easy to operate.
7) It adopts vacuum calibration inside the mould and force air/water cooling outside.
Our service:
1) We recommend of machine and auxiliary equipments and relevant budgeting, human resources allocation and budgeting.
2) We would like to answer any inquiry within 24 hours and it will be solved as soon as possible.
3) The buyer can send the worker to our company for training.
4) The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
5) Our engineer can be to the Buyer's company for installation and testing the lines.
