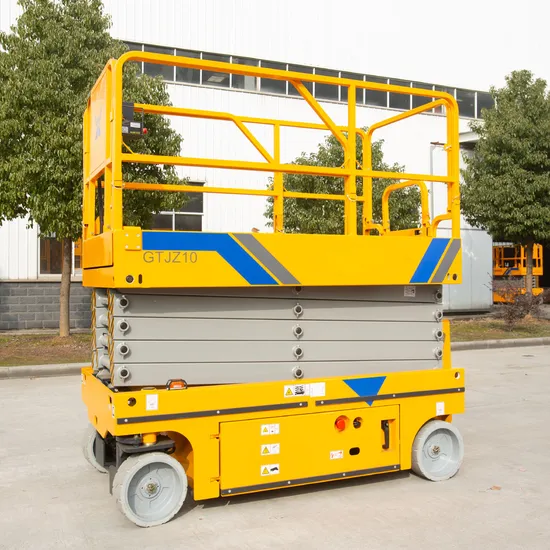

10m Electric Motor Driven Self Propelled Scissor Lift Platform
| US$8,500.00-13,000.00 | 1 Unit (MOQ) |
Basic Info.
Model NO.
GTJZ10
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Aerial Work Platform
Certification
CE, ISO 9001
Structure
Boom Crane
Installation
Tyre Crane
Type of Work
Light Level
Max. Platform Height
10m
Lift Rated Capacity
320kg
Platform Size
2260×1130mm
Transport Package
Bulk
Specification
SGS
Trademark
KUDAT
Origin
China
HS Code
8428909090
Production Capacity
500PCS/Month
Product Description
10m Electric Motor Driven Self Propelled Scissor Lift PlatformProduct Description:
1.Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline
| 1. | Platform height maximum | 9.9m |
| 2. | Working height, maximum | 11.9m |
| 3. | Maximum load capacity | 320kgs |
| 4. | Length(stowed) | 2.485m |
| 5. | Width | 1.15m |
| 6. | Height(stowed) | 2.465m |
| 7. | Height(Guardrail fold stowed) | 2.01m |
| 8. | Platform height minimun | 1.324m |
| 9. | Platform measurement | 2.26*1.13m |
| 10. | Length extension deck | 0.9m |
| 11. | Ground Clearance-center | 100/20mm |
| 12. | Turning radius Minimum | 0/2.2m |
| 13. | Travel Speed(stowed) | 3.2km/h |
| 14. | Travel Speed(raised) | 0.8km/h |
| 15. | Maximum Allowable working Angle | 2°/3° |
| 16. | Grade ability | 14°(25%) |
| 17. | Tire | Φ381*127mm |
| 18. | Weight | 2450kgs |
| 19. | Lift Motor | 24/4.5V/KW |
| 20. | Battery | 4*12/150V/AH |
| 21. | Charger | 24/20-30V/A |
