Manufacturer′s Direct Sales Chemical Blue Barrel Dual Axis Shredder for Plastic Pet PP PE PVC ABS EVA Bones Wood Rubber Metal Waste Garbage Cushing Shredding

Product Description

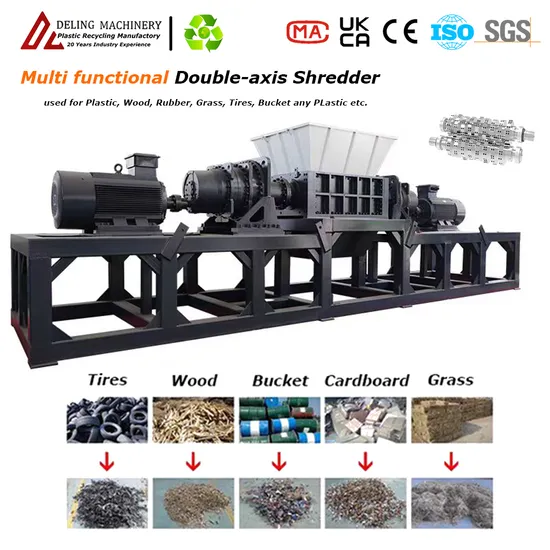

Double Shaft Shredder
Double axis shredder is a high torque double axis crusher that operates slowly.
The material enters the interior of the box through the feeding system and is collected by two rotor shafts carried on the box, which rotate alternately inward or outward.
Each shaft is equipped with a row of special geometric shredding blades.
The material is shredded into small pieces through a combination of cutting, squeezing, and tearing by the shredding blade, and then discharged from the lower part of the box.
Double Axis Shredder
Electrical system adopts PLC program: features start, stop, forward, reverse and overload automatic protection functions;
Along with automatic, safe and efficient, long service life, low speed, high torque, low noise;
Tool thickness can be customized: 15mm, 20mm, 30mm, 40mm, 50mm, 60mm;
Can choose single tooth or multi-tooth: single tooth is suitable for hard, rigid materials, but multi-tooth is suitable for soft materials, and high yield.

Double Shaft Shredders is featured sophisticated design, robust structure, and high efficient shredding result, two shaft shredders are normally used first stage shredder for materials like truck tires, steel drums, organic waste, and MSW, With a two shaft shredder, once the materials is fed into the cutting chamber, the cutting blades with hooks will grab material and then shear it down to strips. The shreds are directly discharged after cutting without passing through a screen, so the size of shreds is quite random, custom blade widths can match your required size.

Model	Power (KW)	Blades (Pcs)	Blades Thickness (mm)	Rotor Diameter (mm)	Production Capacity (KG/H)	Dimensions (mm)	Weight (KG)
DL-600	22*2	20	2	300	300-500	2300*1000*1850	1500
DL-800	30*2	20	2	320	600-800	2500*1000*1850	2000
DL-1000	37*2	20	4	420	900-1200	2800*1100*2100	3500
DL-1200	45*2	24	4	420	1300-1500	3500*1350*2500	5000
DL-1400	55*2	28	4	520	1600-2000	4200*1900*2900	7000
DL-1600	75*2	32	4	520	2000-2500	4800*1900*2900	9500

Materials that can be shredded
Prospects and advantages of the plastic recycling industry
1. Environmental protection
Reducing pollution: Plastic recycling can effectively reduce the environmental pollution caused by plastic waste and minimize the damage to land and water resources.
Resource conservation: By recycling and reusing plastic products, the demand for virgin plastics can be reduced, and non renewable resources such as oil can be saved.
2. Policy support
Government promotion: Governments around the world are increasingly focusing on environmental protection and have introduced multiple policies and regulations to encourage and support the development of the plastic recycling industry.
Economic incentives: In some countries, governments provide tax incentives and subsidies to plastic recycling companies to further promote industry development.
3. Market demand
Enterprise demand: With the increasing awareness of environmental protection, more and more enterprises are choosing to use recycled plastics to reduce their environmental footprint.
Consumer preference: The demand for environmentally friendly products has increased, and consumers are willing to pay a premium for products that use recycled materials.
4. Technological progress
Recycling technology: Plastic recycling technology continues to advance, making the recycling process more efficient, cost-effective, and of higher quality.
Innovative applications: The development of new materials and processes enables the application of recycled plastics in more fields, such as building materials, textiles, etc.
5. Global Trends
International Cooperation: Environmental organizations and enterprises worldwide are strengthening cooperation to jointly promote the development of the plastic recycling industry.
Standardization: The development of international standards helps to improve the quality of recycled plastics and promote their circulation and use in the global market.
The plastic recycling industry has broad prospects and significant advantages, which can not only reduce environmental pollution and save resources, but also receive dual promotion from policy support and market demand. With the continuous advancement of technology and the strengthening of global cooperation, the plastic recycling industry will usher in a brighter future.
Q: What is the price of plastic recycling line?
A: This depends on the customer's level of cleanliness of the final material and the required production capacity. We can cals recommend themost effective recycling line combination for the customer based of their budget range
Q: Is it necessary to remove the labelmachine?
A: If there are no labels or caps on the bottles that need to be recycled, or if the customer does not need to remove them, there is no need to remove them, there is no need to remove the label machine
Q: How many labels can be removed by the label removal machine?
A: Processing compressed bottles can remove over 96% of labels and caps, while processing uncompressed bottles can remove over 98%
Q: How often does the blade of the crusher need to be sharpened?
A: Grind at least once a week
Q: How to discharge the dirt and sewage of high-speed fiction cleaning machine?
A: Discharge through the discharge outlet below the machine
Q: What is the most suitable temperature for hot cleaning a steamer?
A: Around 80°C
Q: How to remove residual labels and bottle caps from bottles after the label removal machine?
A: Residual labels and bottle caps can be removed through rinsing tanks and vertical label and cap removal machines
Q: What are the functions of a rinse tank?
A: It can clean the crushed materials, and the residlual label paper and bottle caps willfloat on the water surface when they pass through the rinsing tank, and will not be transported to the next machine
Q: What is the moisture content of the material after passing through the dehydrator?
A: ≤3%
Q: Can a plastic granulator be connected behind the plastic recycling line
A: Yes
Partner with Us for a Sustainable Future in Plastic Recycling
