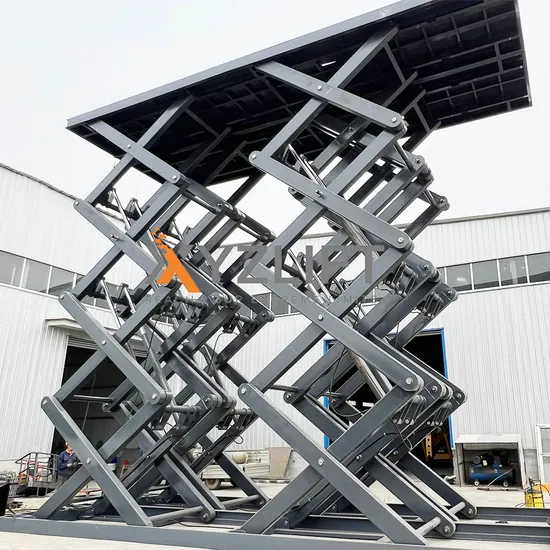

Multiple Scissors Hydraulic Platform Lift with Large Customized Platforms

Product Description

Multiple Scissors Hydraulic Platform Lift with Large Customized Platforms Product Description
A scissor lift is a mobile supported scaffold work platform that is used for interior maintenance work, such as ceiling construction, painting, and sign hanging, in a variety of industries like construction, retail, automotive, film, and manufacturing. Its purpose is to lift materials and workers, who are guarded by a railed platform, vertically to the desired working heights, travel up to 11m, covering 4 floors. Since a scissor lift can collapse and be easily stored, it is a true rival to the traditional ladder, and it can hold multiple workers at once unlike an aerial forklift.
Scissor Lift Parameter

Model NO.	XYZSL-7
Model Type	Stationary
Load Capacity	7000kgs
Platform size	7000*5000mm or customzied
Travel height	11000mm
Normal Speed	4-5m/min
Color	Yellow/Blue/Grey/Other
Power	3/4KW
Power Supply	AC 220V/380V 50Hz/60Hz
HS Code	84289090

Major Components for Lift
1.Platform
The scissor lift platform features a sturdy main structure constructed with high-quality channel steel and rectangular steel tubes. Its surface is enhanced with a checkered plate, offering both durability and improved traction. Additionally, the platform is equipped with strategically positioned handrails to ensure optimal cargo protection during lifting operations.
2.Scissors
The scissor lift structure is standardized using rectangular steel tubes. The size of these tubes is carefully selected based on the load capacity and platform size requirements. In cases where a lower closed height is needed, we incorporate steel plates into the design. The thickness of these plates is specifically determined, considering the scissor lift's load capacity and platform size.
3.Base frame
The base of the scissor lift is constructed using channel steel, and the size of the channel steel is carefully selected based on the load capacity and total weight of the scissor lift. This ensures the stability and structural integrity of the scissor lift during operation. XYZLIFT prioritize the appropriate selection of channel steel dimensions to match the specific requirements of each scissor lift, providing you with a reliable and robust lifting solution.
4.Hydraulic Pump
The hydraulic power unit of the goods lift is supplied by Siemens, known for its long lifespan and minimal maintenance requirements. It can be customized to customer's voltage.
5.Hydraulic Cylinder
The diameter of the hydraulic cylinder in our scissor lifts is precisely selected to align with the specific lift height and load capacity requirements. This meticulous sizing ensures optimal performance and efficient lifting operations. For our hydraulic cylinder seals, we exclusively source high-quality seals from NSK, a renowned and trusted brand based in Japan.
6.Control Box
We utilize Omron limit switches in our goods lifts, ensuring accurate and reliable floor-level detection. We incorporate an additional final limit switch at the top floor as an extra safety

Scissor Lift Safety
Hydraulic System
Overload protection:The scissor lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
Emergency descend valve: The scissor lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
Hydraulic Cylinder with explosive-proof valve:The scissor lift is equipped with an overload protection system that automatically detects and prevents excessive weight from being lifted, ensuring safe operation.
Pump station with case cover:The pump station of the scissor lift is enclosed with a protective case cover, offering protection against adverse weather conditions and external forces.

Control System
Emergency stop: A crucial safety feature of the scissor lift is the emergency stop button that instantly halts operations during emergencies or risky situations.
Final limit switch: Situated above the top floor level limit switch, the final limit switch prevents the scissor lift from overtraveling in case the top floor level limit switch malfunctions.
Voltage protection mechanisms are integrated into the scissor lift to shield the system from power fluctuations and electrical issues, ensuring reliable and safe functionality.
Key switch for power supply cutoff: The scissor lift is equipped with a key switch to disconnect the power supply, allowing authorized personnel to secure and control equipment access.
Platform
Maintain support bar: Our scissor lifts are designed with a maintenance support bar to ensure worker safety during maintenance tasks. This bar adds stability, preventing platform descent and creating a secure work environment.
Electric toe guard: For added safety, our scissor lifts come with an electric toe guard. This feature stops the lift automatically if it encounters an obstacle while descending, reducing potential hazards.
Anti-slip platform surface: The inner platform surface of our scissor lifts is constructed using anti-skid steel plate to provide traction and prevent cargo from slipping during vertical movement.
Railings and interlocked doors are included in our scissor lifts to enhance safety measures. The platform features 1.1m high railings to prevent items from falling off during operation. The interlock system ensures the lift operates only when the door is closed, with opening the door stopping the lift automatically.
