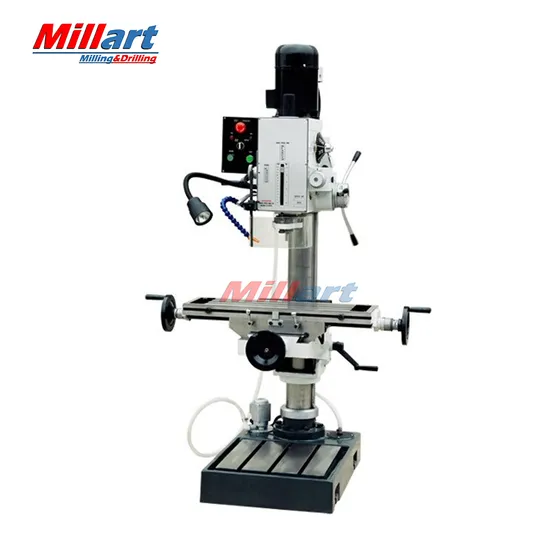

Auto Feed Vertical Drill Machine Z5032c-1/Z5040c-1/Z5045c-1
| US$1,300.00-1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5032C-1/Z5040C-1/Z5045C-1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Step of Spindle Speed
6
Max. Travel of Worktable
600mm
Distance From Spindle Axis to Column
290mm
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
84592900
Production Capacity
200 PCS/Month
Product Description
Auto Feed Vertical Drill Machine Z5032c-1/Z5040c-1/Z5045c-1Features:
Drilling, milling and tapping
Worktable can move X Y Z axis
Head swivels 360 degree horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindle lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Technical parameter:
| Model | Z5032C/1 | Z5040C/1 | Z5045C/1 |
| Max.drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Spindle feed steps | 6 | 6 | 6 |
| Spindle feed range | 0.06-0.3mm/r | 0.06-0.3mm/r | 0.06-0.3mm/r |
| Distance from spindle axis to column | 290mm | 290mm | 290mm |
| Distance from spindle nose to table | 700mm | 700mm | 700mm |
| Distance from spindle nose to base | 1125mm | 1125mm | 1125mm |
| Max.travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock | 360/ 90 degree | 360/ 90 degree | 360/ 90 degree |
| Max.travel of worktable | 600mm | 600mm | 600mm |
| Worktable size | 730x210mm | 730x210mm | 730x210mm |
| Worktable travel X,Y,Z axis | 500x205x570mm | 500x205x570mm | 500x205x570mm |
| Base size | 417x416mm | 417x416mm | 417x416mm |
| Swivel angle of table | 360 degree | 360 degree | 360 degree |
| Table tilt | +/-45 degree | +/-45 degree | +/-45 degree |
| Size of stand base | 417x416mm | 417x416mm | 417x416mm |
| Motor Power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Net weight/Gross weight | 450kg/500kg | 452kg/502kg | 455kg/505kg |
| Packing size | 1850x750x1000mm | 1850x750x1000mm | 1850x750x1000mm |
Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
