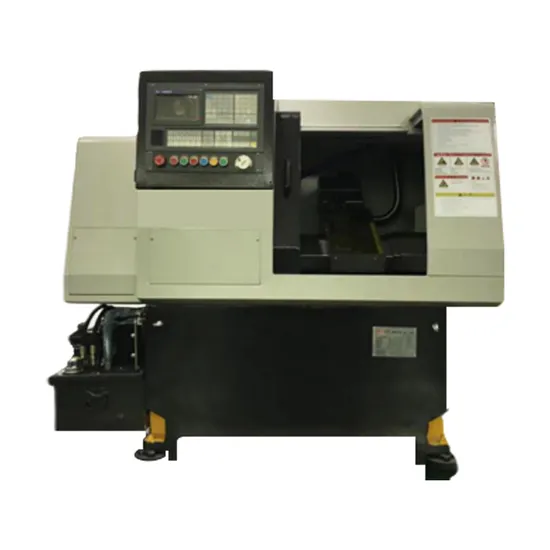

Linear Guide Slant Bed CNC Lathe Machine
| US$8,500.00-9,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK-30
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Dimension(L*W*H)
2535X1672X1662
Transport Package
Wooden Case
Specification
CNC Lathe
Trademark
SMAC
Origin
China
Product Description
processed sample:
main configuration
| Name | specification | brand | remark |
| cnc controller | GSK980TC3 | gsk | |
| servo motor | X=110SJT-MZ060D Z=110SJT-M060D | gsk | X=6NMband-type brake,Z=6NM |
| main motor | 3kw Frequency conversion main motor | china | SK4.0kwfrequency changer |
| spindle bearing | front 3 is 7015CP4DBB behind 2 is 7015CP4DBB | china | front 2 back 2 |
| spindle unit | Φ120spindle,holeΦ37 | homemade | bearing |
| linear guide way | X=QHH30/Z=QHH30 | Hiwin | Taiwan precision class, silent class |
| ball screw | X=2510/Z=2510 | china brand | Taiwan precision class, silent class |
| clamp | collet | homemade | holeΦ50/4500r/min |
| hydraulic oil cylinder | SH636 hollow hydraulic oil cylinder | China brand | 4500r/min |
| hydraulic station | JM120 hydraulic system | China brand | JM120 hydraulic system |
| cooling system | 120W |
Machine parameter
| Item | Specifications | Unit | CK-30 | |
| Process range | Max swing diam over bed | mm | Φ300 | |
| Max swing diam over slide | mm | Φ120 | ||
| Max.clamp diam of collet | mm | Φ37(drawn pipe Φ31) | ||
| Max.length of turning | mm | 180 | ||
| spindle hole diam | mm | Φ37 | ||
| Max.spindle speed | rpm | 4500 | ||
| main notor power | Kw | 3.0 | ||
| feed | X/Z X and Z travell | mm | 280/240 | |
| X/Z X and Z rapid speed | m/min | 20/20 | ||
| carrier | gang tool type | |||
| qty of gang tool type | pc | 5 | ||
| turning tool/borning tool | mm | 16×16/Φ25 | ||
| accuracy | Radial runout of the spindle's outer circle | mm | ≤0.005 | |
| positionaI accuracy | X | mm | ≤0.005 | |
| Z | mm | ≤0.005 | ||
| repeated positioning accuracy | X | mm | ≤0.005 | |
| Z | mm | ≤0.005 | ||
| Roundness error of turning workpiece | mm | 0.005 | ||
| Turning workpiece consistency in longitudinal section | mm | 0.005/75 | ||
| Others | Bed layout | Overall inclined bed | ||
| NW/GW | Kg | 1000/1200 | ||
| (LxWxH) SIZE | mm | 1600x1240x1520 | ||
