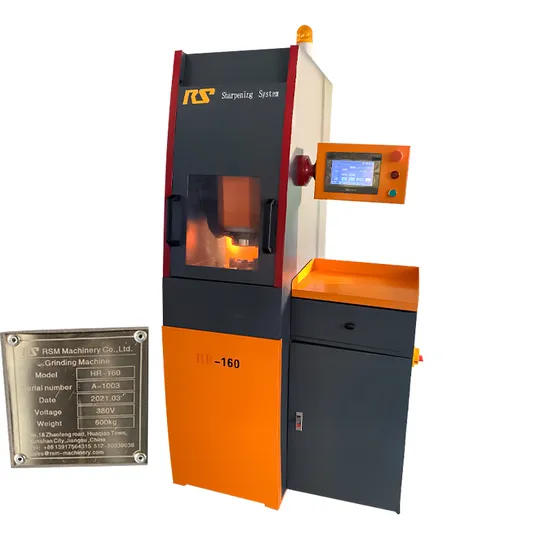

160mm Automatic Blowing System Multifunctional Tool Grinder Grinding Machine
| US$8,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RG-160
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Transport Package
Export Wooden Box
Specification
820x820x1810mm
Trademark
RS
Origin
China
Product Description
Product DescriptionWith HR-160 easy to use to touch screen interface Percision grinding turret,thin turret,Murata and other series of molds.
| Maximum tool diameter | 160 mm (6.299") (Type E (4-1/2") die) | Vertical feed fast speed | 300mm/min |
| nimum tool diameter | 1.51mm | Vertical feed slow speed | 1.2mm/min |
| Minimum tool height | 150 mm (5.906") (when Type E (4-1/2") shear-angled punchbody jig is used) | Grinding speed | 0.06mm/min-0.9mm/min |
| Standard grinding wheel | Made of CBN and 135 mm (5.315") in diameter (conductive) | Table motor | 0.1 KW,4P,1/30 |
| Spindle motor | 2.2 KW,2P | Table speed | 50 rpm |
| Spindle rotating speed | 2800rpm/50HZ | Coolant motor | 0.06 KW 2P |
| Vertical feed motor | 0.1 KW servo motor with 1/12 gear head | Coolant tank | 34 L |
| Vertical travel distance | 240mm | Air | 0.5 MPa |
| Weight | 500 kg | Machine dimensions | 813 × 858 × 1930 mm |
