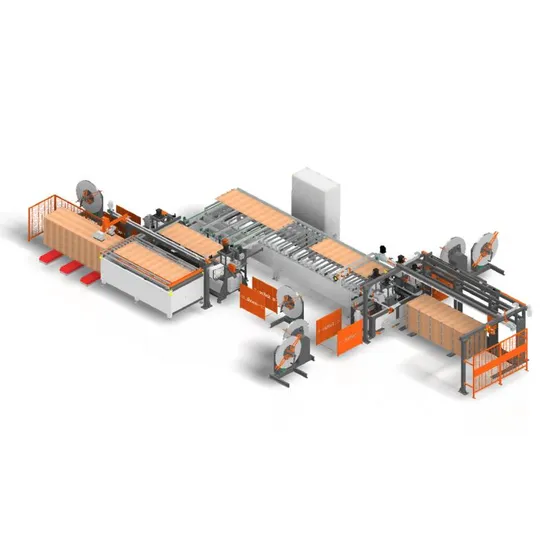

Saifan Sf208 Wooden Nailless Plywood Box Automatic 4 Sides Steel Buckle Making Machine

Product Description

Product Description
SF206 Labor Saving And High Speed Four Sides Buckle Machine
Product Parameters

Model	SF206
Operator	1
Steel strip size	50*0.7mm
Working width	300-1300mm
Working length	550-2700mm
Plywood thickness	5-9mm
Buckle hole diameter	18mm
Automatic coil feeder	4 sets automatic
Working width adjust method	Electric control With measure scale
Productivity	30000-80000 buckles/8h
Machine control system	Siemens touch screen + PLC
Working accuracy	±2mm
Machine power	30KW
Voltage	380v 50hz 3phase
Air consumption	0.8Mpa
Machine size	12*10*1.8m
Machine weight	7500kg

Detailed Photos
Detailed Images

Control cabinet Siemens PLC and touch screen, Standard with Chinese and English.Other language is also ok, if you can translate for us.

Program Production interface, automatic generated.

Mechanical arm Automatic hold the plywood and stack it

Double feeding system All are servo feeding, for the two molding system

Heavy duty mold Our own design, long life, in normal operation only need some normal maintenance, like clean or sharpen the inside punching heads

Oil pump Supply strong hydraulic pressure, long service life

Final Product
Final Product
Company Profile
High-Class Service Import & Export Co., Ltd. is a professional manufacturer in producing Wood Working Machine, and we got the supports as below.
1.15 years woodworking machinery experience
2. 8 years exportation experience
3. Engineer team with +20 years experience
4. Diamond supplier in made-in-china
5. Professional and real-time after-sales service
6. Our company and products have been verified by SGS Group
7. Annual value of production: US$6 Million - US$10 Million.
Certifications
After Sales Service
1) Seller will send engineer (Chinese speaking, buyer prepare translator) to service in site, all cost in buyer's account (the
machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and insurance cost, hotel and eating responsible by buyer, and extra labor salary.
2) If travel abroad is impossible, then we will send you videos for installation and operation, and supply online guide from
WeChat/WhatsApp, some of our customers work the machines properly through this way. We have English videos for almost every machine, videos about the installation steps, operation steps, maintenance steps, most our customer use the machine succeed base on our videos. 3) Warranty
in 1 year since buyer receive the machine.
In warranty period seller will supply Free parts and online service exclude,
Easy wearing parts (saw blade, cutters, motor belt, small electric components).
Damage by wrong operation.
Out of warranty period seller supply paid parts, Lifelong responsibility.
And our Aftersales service team can supply free online support in 6 days per week, 10+ hours per day.
Below some pictures for your reference.
Customer Feedback
FAQ
Q, What's the steel coil material and size?
A, It's galvanized steel coil, standard size 50mm width 0.7mm thickness. Other size we also can customized the machine with extra cost. Steel coil inner diameter 500mm, outside diameter 1250mm, weight max. 400kg.
Q, If I buy machine with your standard molds, future can I change to other mold?
A, If same size can change.
Q, The working plywood thickness 5-10mm, can it be bigger?
A, it's most common size in market, if need bigger, we have to use bigger size steel coil, max. width of steel coil is 65mm, this time the working plywood thickness can be 6-12mm, and machine cost increased.
Q, How long time for the machine production?
A, Normally 30-50 working days

Q, Is it difficult to maintenance the machine?
A, If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.

Q, What's life of the machine?
A, Our workshop have some machines built in 2010, still working normal day by day.
