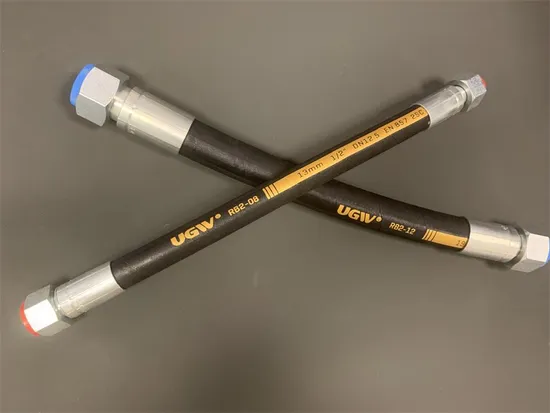

En853 1sn / SAE 100r1 at High Pressure Hydraulic Rubber Hose with Carbon Steel Crimping Fittings and Coupling

En853 1sn / SAE 100r1 at High Pressure Hydraulic Rubber Hose with Carbon Steel Crimping Fittings and Coupling

US$0.60-10.00 1,000 Meters (MOQ)

Basic Info.

Color
Black
Model
1sn 2sn 4sp 4sh R15 R16 R17
Length
20m, 40m, 60m or as Your Request
Hose I.D.
3/16′′~3"
Max Work Pressure
3630psi (25MPa)
Minimum Bursting Pressure
14500psi (100MPa)
Minimum Bending Radius
90mm
Weight
0.19~2.35kg/M
Transport Package
Shipping
Specification
1/4′′,1/2′′,3/4′′,1′′,1-1/4′′,1-1/2′′,1-3/4′′,2′′
Trademark
UGW
Origin
China
HS Code
400921000
Production Capacity
1.5 Million Per Month

Product Description

EN853 1SN / SAE 100R1 AT hydraulic hose factory SAE100R1AT / DIN 1SN Descriptions:
Tube: Oil resistant, synthetic rubber;
Reinforcement: One braid of high tensile steel wire;
Cover: Oil and weather resistant synthetic rubber;
Temperature: -40° F / +212° F, Intermittent use up to 250° F;
Application: Petroleum based hydraulic fluid, water, diesel fuels, lubricating oils, glycol, mineral oils, and more;
Product Description:
SAE 100 R1 technical data
Items number Hose I.D. Hose O.D. Max W.P. Min B.P Min.B.R Weight
in mm Mpa psi Mpa psi mm Kg/m
1SN-3 3/16 12.5 25.0 3630 100 14500 90 0.19
1SN-4 1/4 14.1 22.5 3260 90 13050 100 0.23
1SN-5 5/16 15.7 21.5 3120 85 12330 115 0.27
1SN-6 3/8 18.1 18.0 2610 72 10440 125 0.34
1SN-8 1/2 21.4 16.0 2320 64 9280 180 0.43
1SN-10 5/8 24.5 13.0 1890 52 7540 205 0.51
1SN-12 3/4 28.5 10.5 1520 42 6090 240 0.66
1SN-16 1 36.6 8.7 1280 35 5080 300 1.00
1SN-20 1 1/4 44.8 6.3 910 25 3630 420 1.35
1SN-24 1 1/2 52.1 5.0 720 20 2900 500 1.56
1SN-32 2 65.5 4.0 580 16 2320 630 2.20

Quality Control:
Our Equipment:
Our Packaging:
Standrad packaging: Plastic Belt or as your request.
Application:
FAQ 1, Q. What is your terms of packing?
A: Plastic wrap or wrapped according to customer's requirement
2, Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3, Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4, Q. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
5, Q:what after -sales can we offer?
A: We keep our quality from the material selection to the product itself. Any quality problem after three months, we are responsible for it.
6, Q. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, But you need to pay for shipping.
7, Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
8, Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
