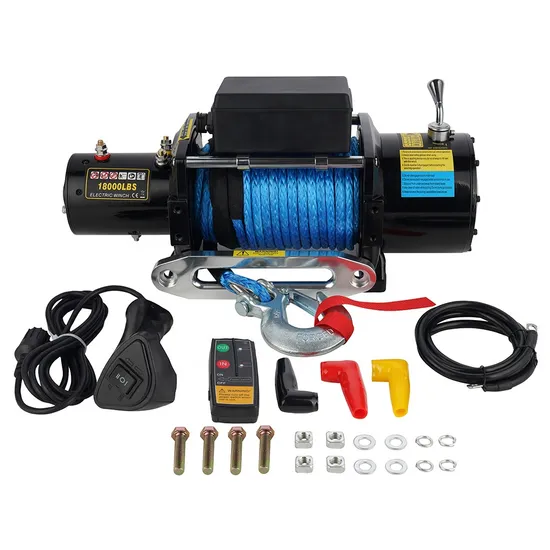

12V 18000lbs Electric Winch with Synthetic Rope for Truck
Basic Info.
Model NO.
AT-18000
Power Type
Series Motor DC
Electric Winch Model
Truck Winch
Working Voltage of Electric Winch
Low Voltage
Brand
Antai
Applicable Environment
Mountain Road
Certification
TUV, GS, CE
Transport Package
Carton and Pallet
Specification
1PC/CTN
Origin
Ningbo, China
HS Code
84253190
Production Capacity
10000 Sets Per Month
Product Description
Pure copper motor and power cable, waterproof control box, steel gears 12V DC 18000 lbs rated line pull 7.4HP pure copper motor Waterproof control box 3m handheld wired remote Pull-and turn clutch handle 3-stage planetary gearing with 358:1 ratio 11.5mmx26m steel wire rope Heavy duty clevis winch hook Stainless steel 4-way roller fairlead 100% full load holding automatic mechanical brake One year warranty 18000LB WINCH SPECIFICATIONS
| Rated Line Pull | 18000LBS (8181kgs) |
| Motor | 5.5kw/7.4hp, series wound |
| Control | Remote switch, 9.8ft(3.0m) |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 358:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ3.5"(88)mm×(8.7")221.5mm |
| Cable | Φ11.5mmX26m |
| Overall Dimensions | 605mm×216mm×255mm |
| Mounting Bolt Pattern | 253mm×114mm |
| Weight | N.W.54kg G.W.55Kg |
| Packing Size | 655×235×410mm |
| Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
| 0 | 21.1(6.5) | 80 |
| 6000(2700) | 12.0(3.7) | 230 |
| 12000(5443) | 8.8(2.7) | 320 |
| 16000(7200) | 5.8(1.8) | 370 |
| 18000(8181) | 4.6(1.4) | 420 |
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 18000(8181) | 16.3(5) |
| 2 | 16166(7333) | 36.4(11) |
| 3 | 13555(6148) | 60(18.4) |
| 4 | 11670(6293) | 85(26) |
