5 Axis Bridge Saw Countertop Slab Cutter Hknc-650 CNC Router Bridge Cutting Machine Stone Cutting Machine

5 Axis Bridge Saw Countertop Slab Cutter Hknc-650 CNC Router Bridge Cutting Machine Stone Cutting Machine

US$49,500.00-52,000.00 1 Set (MOQ)

Basic Info.

Model NO.
HKNC-650
Usage
Ceramics, Granite, Marble
Application
Art & Craft, Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Color
Red and Ivory
Guide Rail
Linear Guide
Touch Screen
Italian
Gearing
Rack Gear
Head Rotation
0-360 Degree
Head Tilting
0-90 Degree
Table Rotation
0-360 Degree
Table Tilting
0-85 Degree
Diameter of Saw Blade
400-600mm
Dimension of Working Platform
3300X2000mm
Max. Length of Horizontal Cutting
3300mm
Max. Cutting Thickness
200mm
Max. Lifting Travel of Cutter
280mm
Main Motor Power
15kw
Gross Power
21.3kw
Transport Package
Polypropylene Plastics Packing
Specification
6300(L)*3600(W)*3100(H)
Trademark
Hualong
Origin
Putian, Fujian, China
HS Code
84641010
Production Capacity
50 Pieces/Month

Product Description

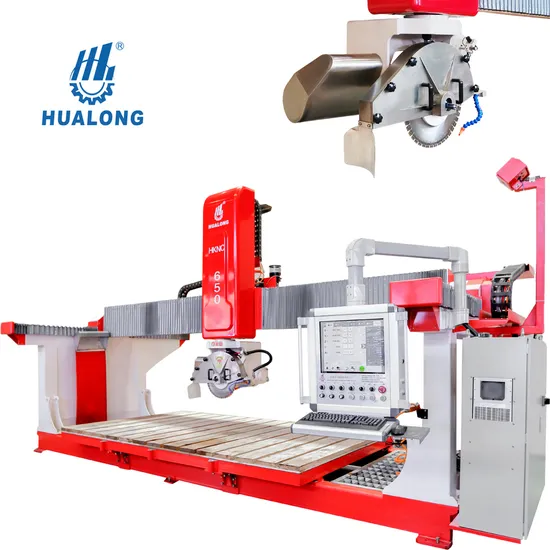

CNC Bridge Stone Cutting and Milling Machine HKNC-650
with 5 axis linkage control, can implement different complex curved surface processing, profiling, such as kitchen countertop, tombstone, art decoration slab & rock sculpture etc.
Specific Features

1. 0° to 360° any angle's automatic positioning cutting.

2. Linear guideway in "X, Y, Z" axis to guarantee accuracy and speed.
3. Electric components in international standards to be easily sourced
ITALY CPU ITALY MOTOR DRIVING SANCH FREQUENCY CONVERTER ITALY SERVO MOTOR
4. Italian imported original servo motors for 5 interpolated axes (X,Y,Z,C,A) to faciliate accurate positioning and faster cutting.
5. Italian imported original software and 15 inch industrial computer screen from Italy.
6. Italian control system in different languages for automatic cutting and easy operation, such as English, Italy, Spanish, Chinese.
7. Milling cutting
8. Engraving
9. Profiling and curved surface processing
10. Photoing
11. Safety door infrared induction (optional)

Technical data of the machine shown as below
